Commercial Door Hinges for Offices, Hospitals, Hotels, Retail Stores

Door hinges are essential for allowing doors to swing open and close smoothly, ensuring ease of access while maintaining the structural integrity of the door. Commercial hinges also play a crucial role in security, fire safety, and aesthetic appeal.

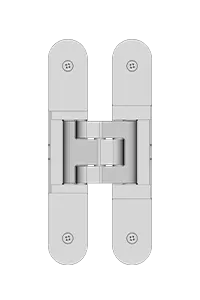

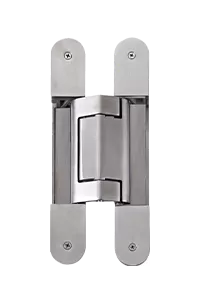

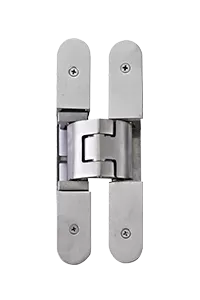

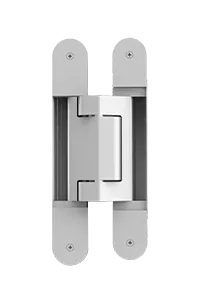

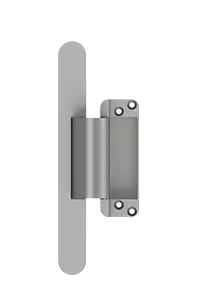

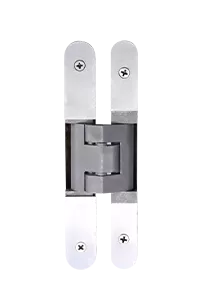

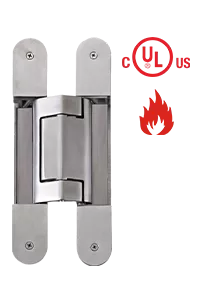

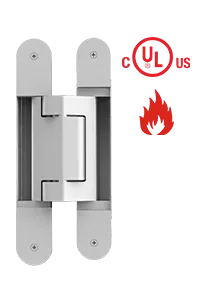

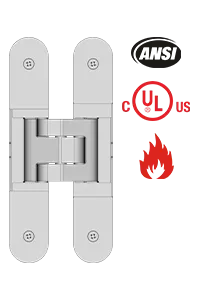

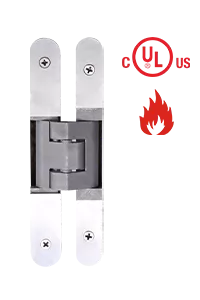

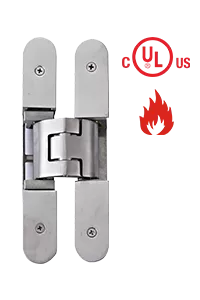

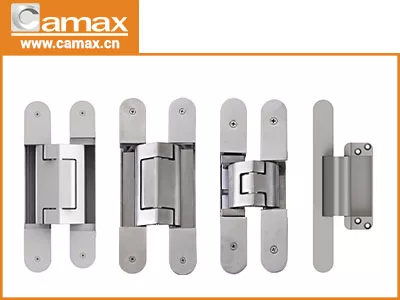

3D Adjustable Invisible Hinges

Made from high-quality 304 stainless steel, Camax 3D adjustable concealed hinges come in multiple finish options including SS, PS, AB, and PVD coatings to suit any design scheme. They’re perfect for wood, steel, profile, and folding doors. Our 3D adjustable hidden door hinges offer a wide opening angle of up to 180 degrees for maximum accessibility.

Panic Exit Devices

	Image	Load Capacity	Standard	Hand	Length	Min. Door Thickness
CHS300		300KG	EN1935:2016	Non-handed	240mm	Not less than 45mm
CHS310		200KG	EN1935:2016	Non-handed	240mm	Not less than 45mm
CHS320		120KG	EN1935:2016	Non-handed	185mm	Not less than 35mm
CHS340		80KG	EN1935:2016	Non-handed	160mm	Not less than 35mm
CHS350		60KG	EN1935:2016	Non-handed	165mm	Not less than 35mm
CHS430		160KG	EN1935:2016	Non-handed	250mm	Not less than 40mm

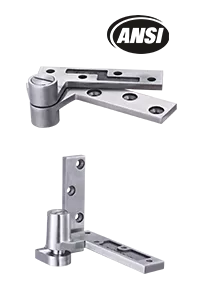

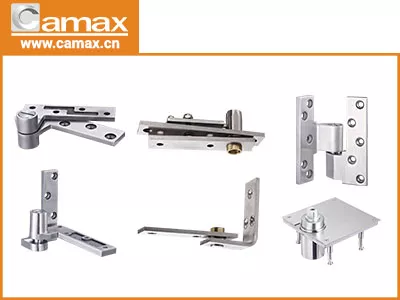

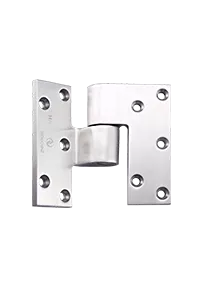

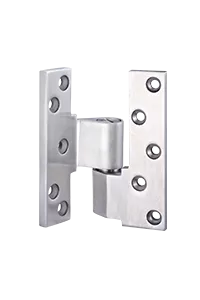

Offset Pivot Hinges

Camax offset pivot hinges, made of stainless steel 304, allow doors to rotate from a single point at the top and bottom of the door, unlike traditional hinges that are mounted on the side. Pivot door hinges are ideal for large, heavy doors and can be used for both single and double doors, making them suitable for entrance doors in commercial buildings like malls, airports, and hospitals.

Panic Exit Devices

	Image	Type	Certificate/Compliance	Load Capacity	Hand	Min. Door Thickness

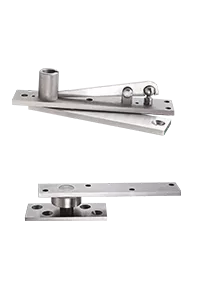

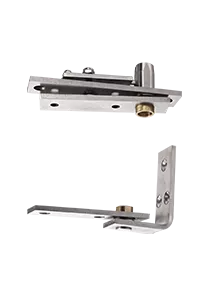

ADL120		Center Pivot	ANSI/BHMA A156.4, grade1; UL10C, 3-hour fire rating	270lbs (120KG)	Non-handed	45mm
ADL250		Center Pivot	ANSI/BHMA A156.4, grade1; UL10C, 3-hour fire rating	500lbs (250KG)	Non-handed	45mm

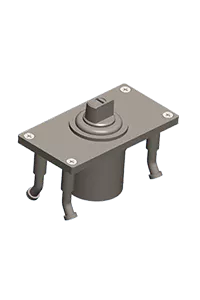

ADL500-FL		Bottom Pivot	ANSI/BHMA A156.4, grade1; UL10C, 3-hour fire rating	500lbs (250KG)	Non-handed	45mm

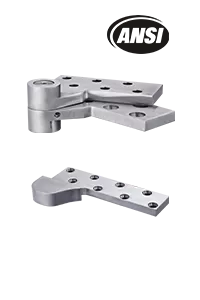

AD200-RH/LH		Offset Pivot	ANSI/BHMA A156.4, grade1	550 pounds (250KG)	Handed	45mm
AD200-2-RH/LH		Intermediate Pivot, Used with AD200			Handed

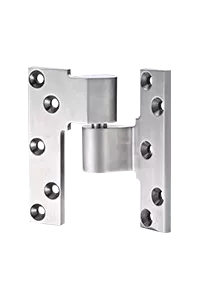

AD300		Offset Pivot	ANSI/BHMA A156.4, grade1; EN12211, 6000Pa	700 pounds (320KG)	Non-handed	45mm
AD300-2		Intermediate Pivot, Used with AD300			Handed
AD500		Heavy-Duty Offset Pivot	ANSI/BHMA A156.4, C07111, grade1	800 or 1000KG	Non-handed	50mm
AD500-2-LH/RH		Intermediate Pivot	ANSI/BHMA NO: CO7321/C07371		Handed

Why Camax Stands Out in Door Hinge Manufacturing?

Camax delivers precision-engineered, durable door hinges with certified quality and custom solutions for commercial excellence.

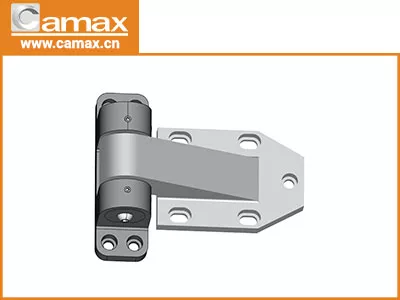

Heavy-Duty Hinges

Heavy-Duty Surface-Mounted Casting Hinges are ideal for doors in high-traffic environments or those that carry heavy loads (such as metal or fire-rated doors). These heavy-duty hinges are designed to withstand continuous use and can handle large, heavy doors without compromising on performance.

Panic Exit Devices

	Image	Type	Material	Door Weight	Feature

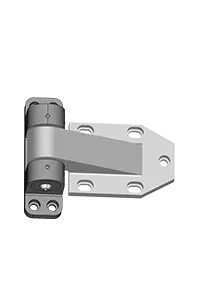

SU800		Heavy Duty, Surface Mounted Casting Hinge	Stainless steel 304	300KG (3 Pieces)	Adjustable depth and side

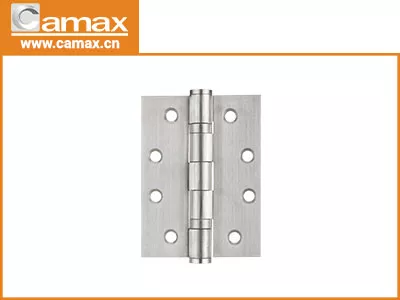

Butt Hinges

Butt hinges are the most common type of hinge for standard doors. They consist of two interlocking pieces and are used in many commercial buildings for wooden and metal doors. Ball bearing door hinges provide enhanced performance, particularly in high-traffic areas, by reducing friction and wear. They are ideal for large doors and heavy-duty applications. Non-ball bearing butt hinges are suitable for lighter doors and lower-traffic environments.

Panic Exit Devices

	Image	Type	Certificate	Material	Finish

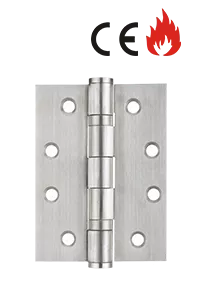

Butt Hinges		Ball Bearing & Non-Ball Bearing Butt Hinges	EN1935; EN1634-1, fire-rated	Stainless steel	SSS, PSS, PVD
