Fire Exit Hardware

Camax Hardware provides advanced fire exit devices that meet ANSI/BHMA/UL/CE standards

Camax Hardware offers certified door hardware

Fire Exit Hardware

Camax Hardware provides advanced fire exit devices that meet ANSI/BHMA/UL/CE standards

Camax Hardware offers certified door hardware

What’s the Difference Between Fire Exit Hardware & Panic Hardware?

Camax Hardware manufactures fire exit devices for commercial buildings

Fire Exit Hardware

Essential elements for fire-rated exit doors: To prevent the spread of smoke and flames, it's always nececessary to install the fire exit devices on doors that have been specifically rated to withstand fire.

Meet UL 10C (fire rating) and ANSI/BHMA A156.3: These standards ensure the hardware can endure extreme conditions, such as high heat, and still function correctly during a fire emergency.

checklist_mark_icon

Panic Hardware

Focuses on emergency egress: Panic devices ensures that doors can be opened easily during an emergency, allowing for quick evacuation. However, these systems are not necessarily fire-rated.

Common in non-rated doors: Panic devices are typically used on doors that do not require a fire rating.

→ Learn more about fire exit & panic hardware solutions

banner--contact--transparent

contact Camax Hardware

Camax Fire Exit Hardware Solutions

Choose from CE and UL-certified touch bar exit devices, cross bar exit devices, mortise locks and adaptable trims options for fire door protection.

Panic Exit Devices

  Image Type Certification Hand Material Lock Point
CMP000 Series CMP000, Camax Hardware's push bar exit devices for fire door Half or Full length of touch bar exit devices ANSI/BHMA A156.3 grade 2; UL listed Non-handed Stainless steel, Steel 1 or 2
CMP450 Series CMP450 Series, Heavy-duty panic devices manufactured by Camax Hardware Half length of touch bar exit device ANSI/BHMA A156.3 grade 1; UL 10C, 3 hours fire rated Non-handed Stainless steel, Steel, Aluminum 1, 2, 3 or 4
CMP466/463 CMP466, Conceal touch bar exit device manufactured by Camax Hardware Concealed half length of touch bar exit device (Pending) ANSI/BHMA A156.3 grade 1; UL 10C, 3 hours fire rated Non-handed Stainless steel, Steel, Aluminum 1 or 2
CMP350 Series CMP350, cross bar exit devices with CE certification of Camax Hardware Cross bar Exit Device EN1125, category 3; EN1634-1, fire rated 2 hours Handed Stainless steel, Steel, Plastic 1 or 2
CMP366 cmp366, Concealed cross bar exit device with CE certification of Camax Hardware Cross bar Exit Device EN1125; EN1634-1, fire rated Non-handed Stainless steel, Steel, Plastic 2
CMP500 Series CMP500 Series, cross bar exit devices with CE certification of Camax Hardware Cross bar Exit Device EN1125; EN1634-1; EN12211, 6000Pa: CMP511 certificate Non-handed Stainless steel, Steel 1, 2, 3 or 4

Mortise Locks for Panic Exit Devices

  Image Type Compliance Hand Panic Function

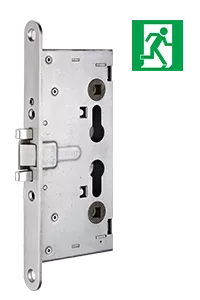

72-65PT 72-65PT, Exit Lock for Panic Exit Devices manufactured by Camax Hardware Exit Lock EN12209; EN179 Non-handed Key action on latch bolt; Single throw dead bolt; Without strike plate.
72-65PC 72-65PC, classroom lock for panic exit devices manufactured by Camax Hardware Classroom Lock EN12209; EN179   Key action on latch bolt; Two-piece follower; Without strike plate.
72-65DA 72-65DA, Exit lock for panic exit devices produced by Camax Hardware Exit Lock   Non-handed Key to unlock; Without strike plate.
72-60/65TR 72-60/65TR, exit lock for panic exit devices manufactured by Camax Hardware Exit Lock EN12209; EN179; EN1125 Non-handed Key to unlock; Without strike plate.
72-60/65TF 72-60/65TF, automatic deadbolt locking exit lock manufactured by Camax Hardware Automatic Deadbolt Locking Exit Lock EN12209; EN179; EN1125 Non-handed Lock case seal, zinc plated; Bolt projection, one throw, 20mm
35-92TR 35-92TR, exit lock for panic exit devices manufactured by Camax Hardware Exit Lock EN12209; EN179; EN1125 Non-handed Key to unlock; Without strike plate.

Trims for Panic Exit Devices

  Image Type Certification Feature Hand Material

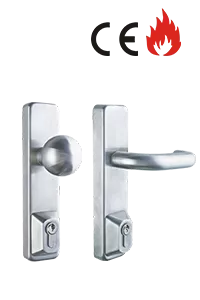

CMPA004/004B/006 CMPA004/006 lever and rose trims, CE-certified and manufactured by Camax Hardware Lever & Rose Trim EN1634-1, fire rated CMPA004/006: with fixed cross shape spindle; CMPA004B: with spindle housing adaptor Non-handed Stainless steel; Steel
CMPA008/010 CMPA008/010 escutcheon trim, CE-certified and manufactured by Camax Hardware Escutcheon Trim EN1634-1, fire rated Cylinder can be changed on site Non-handed Stainless steel; Steel
CMPA012 CMPA012 Escutcheon lever trim, CE-certified and manufactured by Camax Hardware Escutcheon Lever Trim EN1634, fire rated For narrow stile doors, Function 008, key locks & unlocks handle; Free wheeling, clutch design Non-handed Stainless steel 304
CMPA401 CMPA401 escutcheon trim, UL-certified and manufactured by Camax Hardware Escutcheon Trim (Pending) UL 10C fire rated Standard with ACY-28.6mm cylinder; SFIC cylinder is optional; Door thickness 44-50mm Non-handed Stainless steel; Steel
CMPA410 CMPA410 escutcheon trim, UL-certified and manufactured by Camax Hardware Escutcheon Trim (Pending) UL fire rated Standard with ACY-28.6mm cylinder; SFIC cylinder is optional; Door thickness 44-50mm Non-handed Stainless steel; Steel
CMPA450 Series CMPA450 Series, pull and thumbpiece trim manufactured by Camax Hardware Pull & Thumbpiece Trim, Wide Stile   Trim has through-bolts to the device chassis for more security and durability. It fits 1-3/4" (44mm) door standard. Non-handed Finish: US3, US4, US10, US10B, US26, US26B & US32D

banner--contact--transparent

contact Camax Hardware

Camax Hardware FAQ for Fire Exit Devices

Find answers to common questions about fire exit devices and services

Q1. What safety certifications do Camax fire exit hardware products have?

Camax fire exit hardware, like fire exit push bar and cross bar, meets the most stringent international safety standards, including:

ANSI/BHMA Grade 1 for durability (300,000+ test cycles)

UL 10C fire ratings (60-90 minute protection)

CE EN 1125 for panic hardware in Europe

Fire door assembly certifications (tested with doors/frames)

Every product undergoes rigorous third-party testing to ensure compliance with building codes. Certificates are available upon request for specifiers and inspectors.

Camax fire exit devices certified with ANSI, BHMA, CE and UL

Q2. What installation support does Camax provide?

Camax Hardware ensures seamless installation of fire door panic hardware through:

Comprehensive Manuals: Professionally illustrated guides with step-by-step instructions, technical specifications, and safety protocols for all hardware models.

Dedicated Expert Support: Our certified technicians are available to provide: Custom configuration advice, Code compliance verification, Troubleshooting assistance

Simply contact Camax support team for detailed assistance.

Q3. Is it possible to integrate mortise locks with Camax panic hardware for enhanced security?

Absolutely. Our mortise exit devices combine emergency egress with superior locking, like:

The CMP455 push bar exit device pairs with ANSI A156.13 mortise locks (Grade 1)

The CMP505 crossbar exit device works with EN 12209 mortise locks (3-star security)

Custom configurations available for fire-rated doors up to 3 hours

These hybrid systems are ideal for banks, hospitals, and government buildings needing both safety and access control. Contact Camax Hardware for more mortise exit device solutions.

CMP455 mortise exit device manufactured by Camax HardwareCMP505 mortise exit device manufactured by Camax Hardware

Q4. Where are Camax fire exit devices typically installed?

Our hardware is trusted in mission-critical environments worldwide:

Healthcare: Hospital stairwells (fire/smoke compartmentalization)

Education: School corridors with 90-minute fire ratings

Commercial: High-rise office building emergency exits

Hospitality: Hotel ballrooms with concealed vertical rod devices

Government: Courthouses with tamper-resistant crossbars

We help architects select the right solution for each door location and traffic pattern.

applications of Camax door hardware
