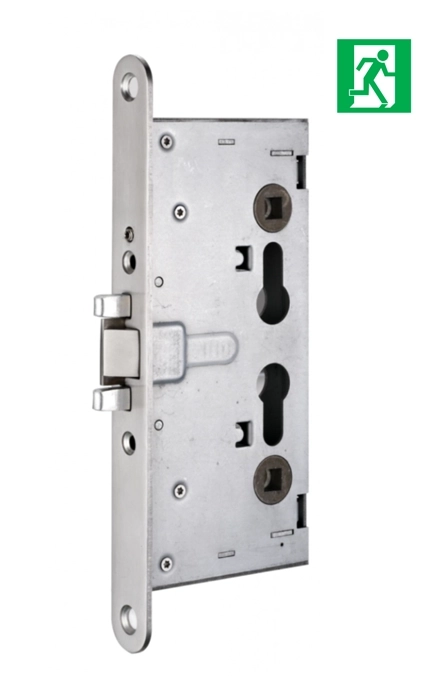

Exit Lock with Key Action on Latch Bolt, 72-65PT
The 72-65PT exit lock is specifically designed for use with panic exit devices, ensuring safety and convenience in emergency situations. Featuring a key-operated latch bolt and a single-throw deadbolt, it provides reliable locking and quick, secure exit. The lock's non-handed design simplifies installation, as it can be easily adapted for either left- or right-handed doors, reducing installation time and complexity. Additionally, the 72-65PT functions without the need for a strike plate, further streamlining its installation process. Ideal for high-traffic and secure exit areas, this lock combines ease of use with advanced security, making it a dependable choice for commercial and industrial spaces.
SPECIFICATION
-
- Feature
-
72-60PL: Passage lock
72-60PC: Classroom lock
72-60PT: Entrance lock
-
- Panic function
-
Key action on latch bolt
Single throw dead bolt
Non-handed
Without strike plate
-
- In unlocked position
-
Latchbolt is operated from both sides by lever handle/key action.
-
- In locked position
-
Inside lever handle retracts latch and deadbolt simultaneously
Outside lever handle retracts latch bolt only. Deadbolt operated by cylinder key
-
- Compliance
-
EN12209
EN179
