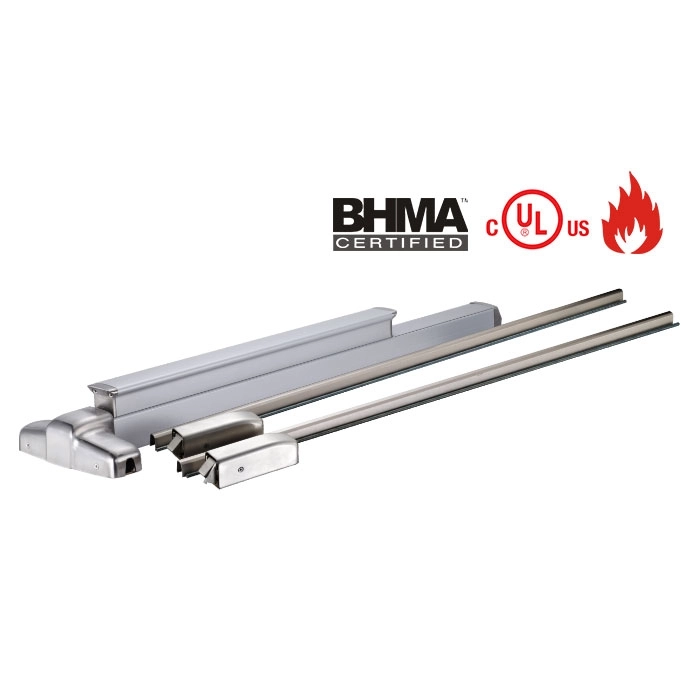

Heavy Duty Panic Exit Device, CMP450 Series
The CMP450 Series is meticulously engineered for exceptional durability and reliability, making it an ideal choice for high-traffic environments. These heavy-duty panic exit devices are rigorously certified by ANSI/BHMA/UL, ensuring they adhere to the highest safety and quality standards in the industry. This certification provides peace of mind to users, knowing that the devices are built to withstand demanding conditions while maintaining optimal performance. Additionally, the CMP450 Series is available in a wide range of finishes and materials, allowing for customization to suit various architectural styles and design preferences. This versatility ensures that safety and aesthetics can coexist seamlessly in any space.
SPECIFICATION
-
- Feature
-
Modular design. More than 4 point locks are available.
Security anti-thrust latch
-
- Hand
-
Non-handed
-
- Certificate
-
ANSI/BHMA A156.3 grade 1
UL10C, 3-hour fire rated
-
- Material
-
Stainless steel
Steel
Aluminum
-
- Finish
-
Standard: Stainless steel satin, Silver painted
Optional: Polishing, PVD, Black, Red
-
- Lock point
-
CMP451: 1 lock point
CMP453: 1 lock point
CMP455: 1 lock point
CMP456: 2 lock points
CMP457: 2 lock points
CMP458: 3 lock points
CMP459: 4 lock points
CMP460: 3 lock points
CMP461: 4 lock points
-
- Touch bar
-
Half length of device
-
- Device for door width
-
24: 24" (610 mm)
36: 28" to 36" (711mm to 914 mm)
48: 34" to 48" (864 mm to 1219 mm)
-
- Device for door height
-
Standard rods accommodate 84" (2134mm)
Extension rods for 96" (2438mm)
Special rods for 120" (3048mm)
-
- Fasteners & sex bolts
-
Screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors
-
- Trim lock tumbler
-
Cross shape
Square shape for CMP455
-
- Dogging, not fire-rated
-
Hex key dogging, cylinder dogging
-
- Trim
-
CMPA004B, 104, 410, 420, 450
Combination Plan: CMP455 + CML820
-
- CML820
-
The latch is locked from either side, except when the outside lever is made inoperative by the thumbturn. The deadbolt is operated by a key from the outside or a turn from the inside. The key from the outside controls both bolts. Operating the inside lever retracts both bolts while the outside remains locked. The latch bolt is deadlocked when the outside lever is made inoperative or when the deadbolt is projected. When the deadbolt is retracted, the lever can be unlocked using the thumbturn.
More Product Info
-
- Plan A: Lever Handle with Rose + CML820 + CMP455
-
-
- Plan B: CMPA450-ML + CML820 + CMP455
-
-
- Plan C: CMPA420-ML + CML820 + CMP455
-
