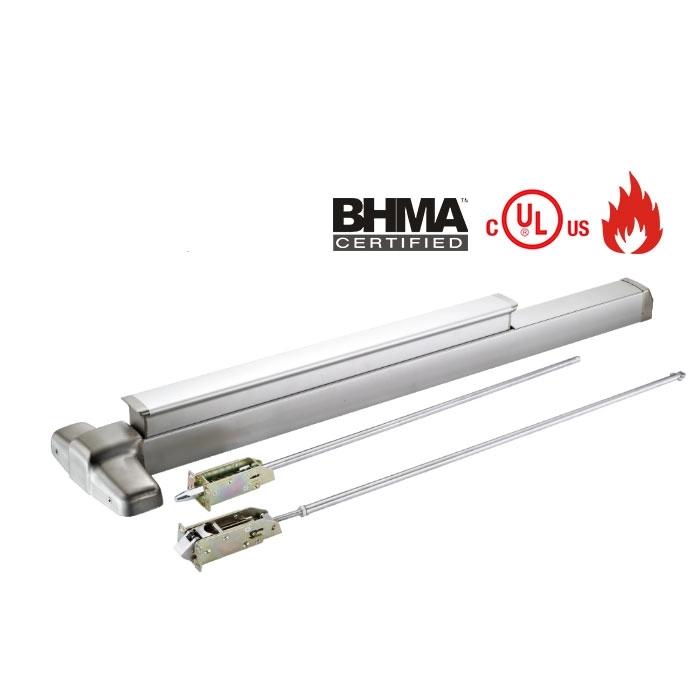

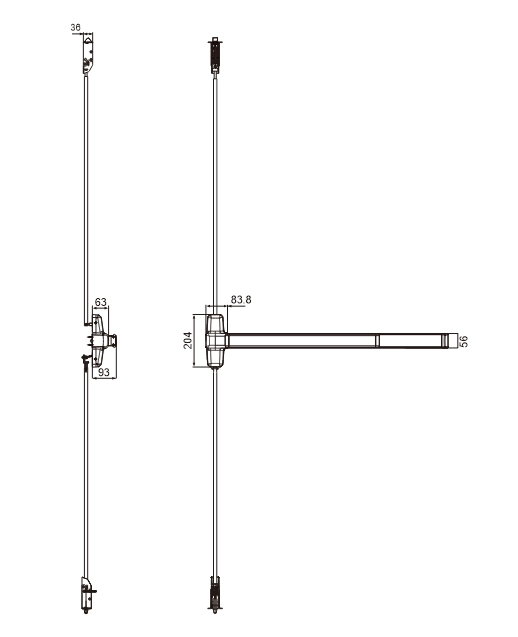

Concealed Vertical Rod Exit Device, CMP466

CMP466

Material : Stainless steel  or stell or Aluminum

Certificate(Pending)

UL ANSI/ BHMA A156.3 grade 1

FIRE UL 10C fire rated 3 hours

The CMP466 is a sophisticated non-handed, concealed vertical rod panic exit device designed to enhance safety while maintaining aesthetic appeal. This innovative device ensures both security and style during emergencies, allowing for a quick and efficient exit without compromising the door's overall design. Its non-handed feature simplifies installation, making it versatile for various door configurations. The CMP466 is engineered for reliability, offering smooth operation and ease of use, even in high-stress situations. With its discreet design, the device seamlessly integrates into the door, providing a sleek appearance while ensuring that safety remains a top priority in any environment.checklist_mark_icon-15px

Request An Inquiry

BHMA     UL certification     fire certification

SPECIFICATION

  • Model

    CMP466: Bottom bolt

    CMP463: Less bottom latch

  • Hand

    Non-handed

  • Certificate (Pending)

    ANSI/BHMA A156.3 grade 1

    UL10C, 3-hour fire rated

  • Material

    Stainless steel

    Steel

    Aluminum

  • Finish

    Standard: Stainless steel satin, Silver painted

    Optional: Polishing, PVD, Black, Red

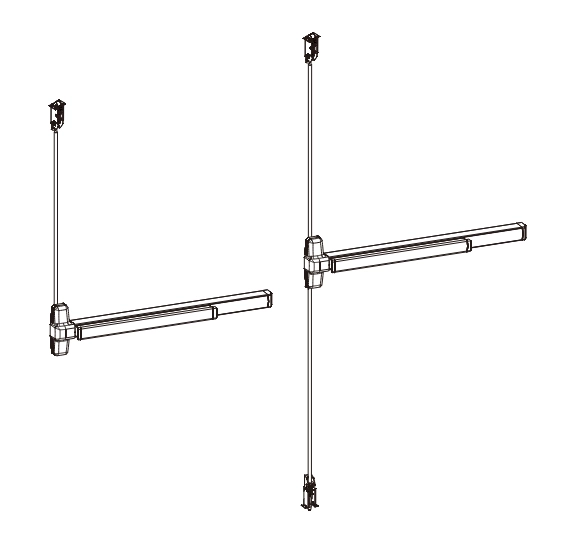

  • Lock point

    CMP463: 1 lock point

    CMP466: 2 lock points

  • Touch bar

    Half length of device

  • Device for door width

    24: 24" (610 mm)

    36: 28" to 36" (711mm to 914 mm)

    48: 34" to 48" (864 mm to 1219 mm)

  • Device for door height

    Standard rods accommodate 84" (2134mm)

    Extension rods for 96" (2438mm)

    Special rods for 120" (3048mm)

  • Fasteners & sex bolts

    Screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors

  • Trim lock tumbler

    Cross shape  Camax's touch bar panic exit device in cross figure

  • Dogging, not fire-rated

    Hex key / cylinder dogging

  • Trim

    CMPA004B, 104, 410, 420, 450

  • Minimum door thickness

    44mm
