What Is a European Mortise Lock?
A compact and versatile locking solution engineered to European standards.
European mortise locks are precision-engineered lock mechanisms installed within the edge of the door, commonly used in both residential and commercial projects across Europe and internationally. Designed according to DIN and EN standards, they typically feature standard backsets and use the Euro cylinder profile for flexible keying options.
Compared to ANSI mortise locks, EN mortise locks have narrower faceplates, different installation cutouts, and are often paired with European-style lever handles. They offer excellent compatibility, design uniformity, and enhanced security options in a more compact form.
European Standard Compliance: Built to meet EN 12209 and EN 1634 standards for durability and fire safety.
Versatile Cylinder Profiles: Typically use a Euro-profile cylinder, providing higher flexibility and compatibility with various key systems.
Multiple Security Functions: Options like deadbolt, latchbolt, and privacy functions, ideal for different types of doors.

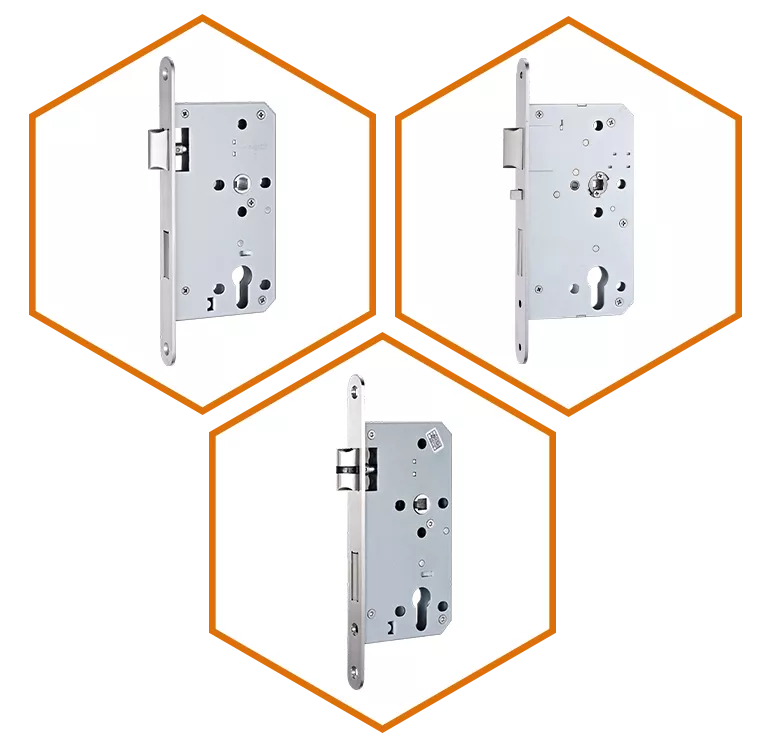

Camax Hardware Supplies Euro Mortise Locks for Your Projects
Choose the Right Lock Based on Door Type and Application. Camax Hardware manufactures a wide range of European mortise locks to fit various door configurations.
Mortise Locks for Wooden & Metal Doors
| Model | Image | Type | Certificates | Function Description |
|---|---|---|---|---|

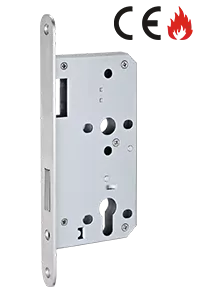

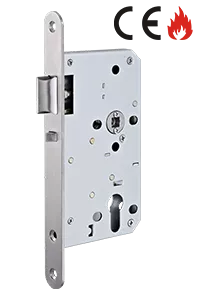

| 72-55A/72-60A/72-65A |  |
Sash Lock | CE certificate, 4-hour fire rating | Lock case seal, zinc plated; Latch and bolt made of stainless steel 304; Bolt porjection, double throw, 20mm; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |

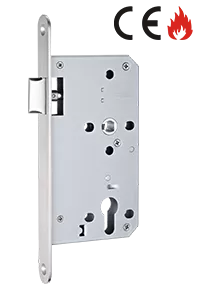

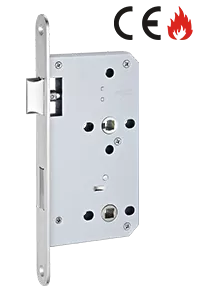

| 78-55WC/78-60WC/78-65WC |  |
Bathroom Lock | CE certificate, 4-hour fire rating; EN12209:3X9b0G0BG10 | Follower to keyway centers 78mm; Lock case seal, zinc plated; Latch and bolt made of stainless steel 304; Bolt projection, double throw, 20mm; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |
| 72-55L/72-60L/72-65L |  |
Latch Bolt Fire-Rated Lock | CE certificate, 4-hour fire rating; EN12209:3X9b0G0BG10 | Lock case seal, zinc plated; Latch made of stainless steel 304; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |

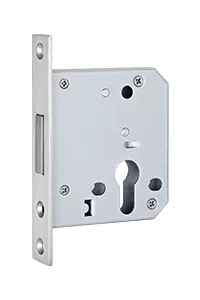

| 72-55D/72-60D/72-65D |  |
Dead Bolt Lock | CE certificate, 4-hour fire rating; 3C-1b0G2BA10 | Lock case seal, zinc plated; Deadbolt made of stainless steel 304; Bolt projection, double throw, 20mm; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |
| 72-60F |  |
Night Latch Lock | CE certificate, 4-hour fire rating; EN12209:3X9b0G0BG10 | Lock case seal, zinc plated; Latch made of stainless steel 304; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |
| 72-60C/72-65C |  |
Night Latch Lock | CE certificate, 4-hour fire rating; 3X9b0G0BG10 | Lock case seal, zinc plated; Latch made of stainless steel 304; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |

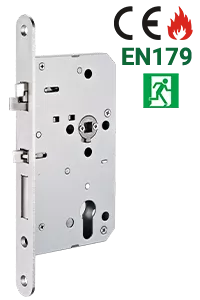

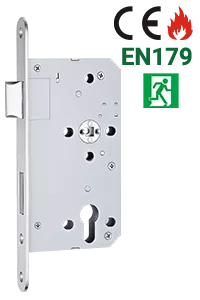

| 72-60T/72-65T |  |
Exit Lock | CE certificate, 4-hour fire rating; EN12209:3X9b0G0BG10; EN179: 376B(b)1322AB | Lock case seal, zinc plated; Latch and bolt made of stainless steel 304; Bolt projection, double throw, 20mm; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |

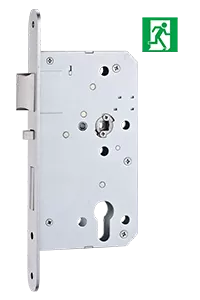

| 72-60TA |  |
Exit Lock with Anti-Thrust | Compliance to EN12209, EN179 | Lock case seal, zinc plated; Latch and bolt made of stainless steel 304 with auxiliary latch; Bolt projection, double throw, 20mm; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |

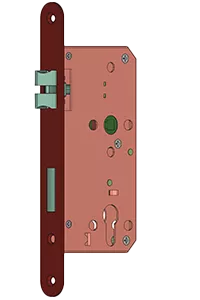

| 72-60TF |  |
Automatic Deadbolt Locking Mortise Lock | EN12209 in preparation | Lock case seal, zinc plated; Latch and bolt made of stainless steel 304; Bolt projection, one throw, 20mm; 8mm square steel follower in steel; Non-handed. |

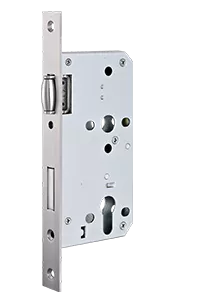

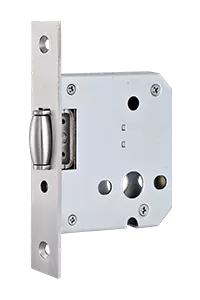

| 72-55P |  |
Roller Latch | Lock case seal, zinc plated; Roller latch and bolt made of stainless steel 304; Hole for standard fixings; Non-handed. | |
| 85-55/60A |  |
Sash Lock | Lock case seal, zinc plated; Latch and bolt made of stainless steel 304; Bolt projection, double throw, 20mm; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. | |
| N72-xxA/L/C/F |  |
Lock with Silent Latch | Latchbolt with plastic piece to reduce noise; These latchbolt can be applied to all locks with latch bolt; "N" means lock with silent latch bolt. | |
| A72-xxA/L/C/F |  |
Lock with Anti-Friction | All latches can be changed into anti-friction; "A" means anti-friction latch. | |
| M72-xxA/L/T |  |
Lock with Magnetic Latch | Latchbolt is magnet; These latchbolts can be applied to all locks equipped with latch bolt; "M" means lock with magnetic latch. | |
| 55-D/60-D |  |
Dead Bolt Fire-Rated Lock | Dead bolt is made of stainless steel 304; Forend is made of stainless steel 304; Follower is cast from stainless steel 304; Non-handed | |
| 55-L |  |
Latch Bolt Fire-Rated Lock | Dead bolt is made of stainless steel 304; Forend is made of stainless steel 304; Follower is cast from stainless steel 304; Non-handed | |

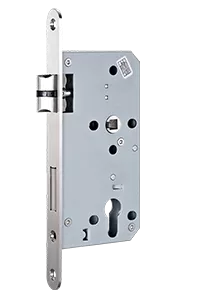

| 55-P |  |
Roller Latch | Roller is made of stainless steel 304; Forend is made of stainless steel 304; Non-handed |
Narrow Stile Mortise Lock
| Model | Image | Type | Certificates | Function Description |
|---|---|---|---|---|

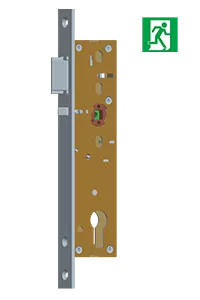

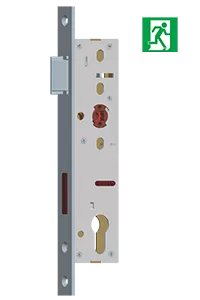

| 35-92/65TR |  |
Exit Lock | Compliance with EN12209, EN179, EN1125 | Panic function: Key to unlock; Non-handed; Without strike plate. In unlocked position: Latch bolt is operated from both sides by lever handle/key action. In locked position: Inside lever handle retracts latch and dead bolt simultaneously; Deadbolt operated by key. |
| 35-92CR |  |
Classroom Lock | Lock case seal, zinc plated; Latch made of stainless steel 304; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. | |

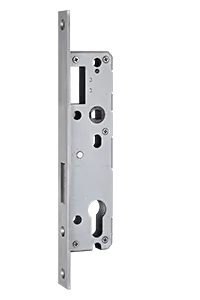

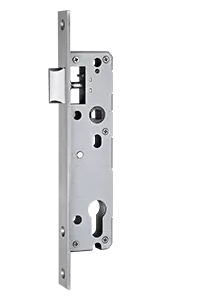

| 30-85A/92A, 35-85A/92A |  |
Narrow Lock | EN12209 in preparation | Lock case seal, zinc plated; Latch and bolt made of stainless steel 304; Bolt projection, double throw, 16mm; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |
| 30-85L/92L, 35-85L/92L |  |
Narrow Lock | EN12209 in preparation | Lock case seal, zinc plated; Latch and bolt made of stainless steel 304; 8mm square steel follower in steel; Hole for standard fixings; Non-handed. |
| 30-85D/92D, 35-85D/92D |  |
Narrow Dead Lock | EN12209 in preparation | Lock case seal, zinc plated; Bolt made of stainless steel 304; Bolt projection, double throw, 16mm; Hole for standard fixings; Non-handed. |

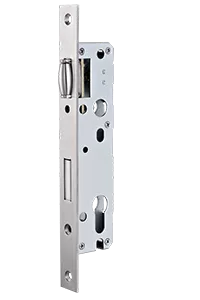

| 30-85P/92, 35-85/92P |  |
Roller Lock | EN12209 in preparation | Lock case seal, zinc plated; Roller latch made of stainless steel 304; Hole for standard fixings; Non-handed. |
Strikes & Cylinders

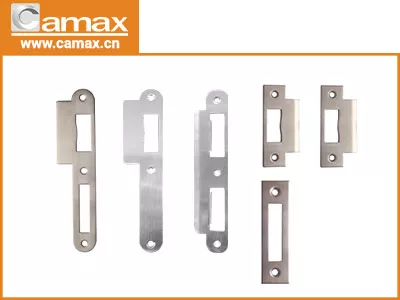

Camax provides multi-sized strikes for Euro mortise locks, ensuring perfect alignment and enhanced security.

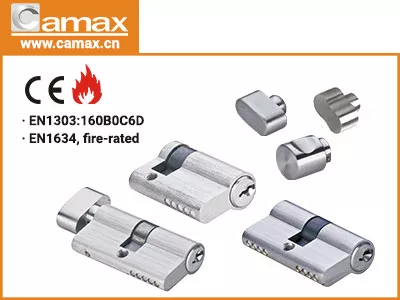

Camax manufactures CE-certified Euro cylinders with fire ratings, ensuring top-tier security and compliance.
Where Camax European Mortise Locks Are Used?
Ideal for interior and exterior doors in residential and commercial spaces.

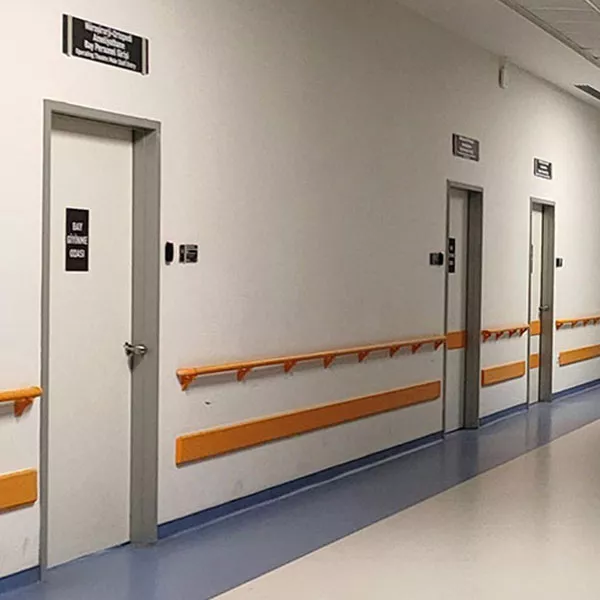

Healthcare Facilities
Camax EN-certified mortise locks can be installed in hospital patient bathrooms and staff toilets to balance privacy with safety. These locks provide robust security while adhering to privacy standards, helping hospitals, clinics, and medical centers offer secure and functional spaces for both patients and staff.
Healthcare Facilities
Camax EN-certified mortise locks can be installed in hospital patient bathrooms and staff toilets to balance privacy with safety. These locks provide robust security while adhering to privacy standards, helping hospitals, clinics, and medical centers offer secure and functional spaces for both patients and staff.

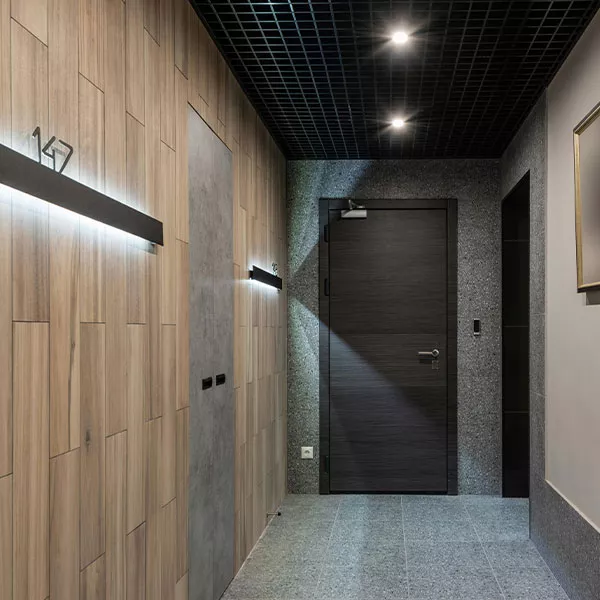

Hospitality
Ideal for hotel corridors, Camax Euro mortise locks, combined with EN1906 and EN1634 compliant door handles, offer superior security and privacy. These locks ensure smooth operation and meet rigorous safety standards, making them perfect for high-traffic areas where both durability and guest privacy are a priority.
Hospitality
Ideal for hotel corridors, Camax Euro mortise locks, combined with EN1906 and EN1634 compliant door handles, offer superior security and privacy. These locks ensure smooth operation and meet rigorous safety standards, making them perfect for high-traffic areas where both durability and guest privacy are a priority.

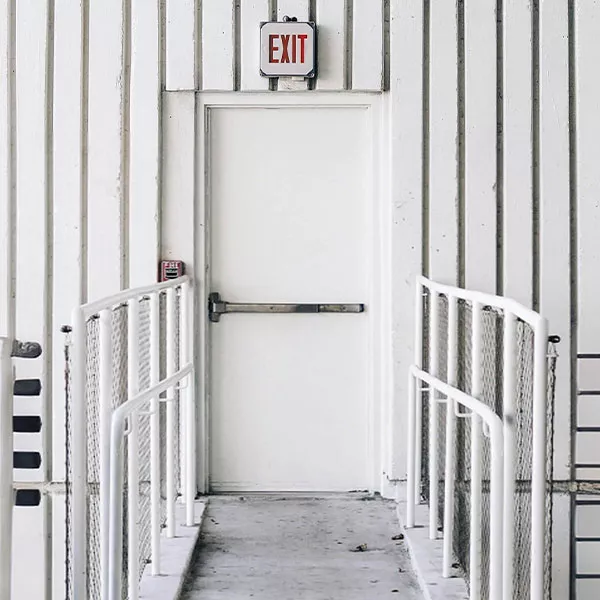

Commercial Spaces
Camax European mortise locks, when paired with panic exit devices, provide reliable security and compliance for office buildings. These commercial mortise locks offer effective emergency exit solutions while ensuring the safety and security of occupants, making them perfect for commercial spaces that require quick, safe, and compliant exits.
Commercial Spaces
Camax European mortise locks, when paired with panic exit devices, provide reliable security and compliance for office buildings. These commercial mortise locks offer effective emergency exit solutions while ensuring the safety and security of occupants, making them perfect for commercial spaces that require quick, safe, and compliant exits.
OEM/ODM Mortise Lock Solutions for Your Projects
Customized functions, sizes, and finishes of EN mortise locks to meet your project’s design and performance goals.
Architectural Specifications
Camax offers OEM/ODM production with support for custom lock dimensions, internal functions (deadbolt, latch, privacy), and fire-rating compatibility.
Divers Finishes
Camax provides multiple finish options, such as Satin, Polished Stainless Steel (PSS), and custom finishes tailored to your project needs.
Engineering & Prototyping
Camax provides engineering support and prototyping services for specialized projects, ensuring tailored solutions from concept to production.
Frequently Asked Questions About European Mortise Locks
Get answers to common questions about Euro profile mortise locks and their use.
Q1. What types of keys can be used with Euro cylinders?
Euro cylinders support a range of mortise lock key options like master keys, owner keys, and construction keys. This setup is perfect for buildings that need different levels of access, such as apartments, hotels, or offices, where facility managers and tenants each need separate, secure access control.
Q2. How is a mortise lock different from a cylindrical lock?
Mortise locks are installed inside a pocket in the door and are known for their strength, security, and variety of functions—ideal for heavy-use areas. Cylindrical locks, on the other hand, are easier to install and better suited for doors that don’t experience as much traffic or demand, like homes.
