Touch Bar Panic Exit Device, CMP000 Series

The CMP000 Series touch bar panic exit device is engineered to provide a swift and effortless means of egress during emergencies, ensuring safety and peace of mind. Particularly suitable for high-traffic environments such as schools, hospitals, and commercial buildings, this device is constructed with durability in mind, capable of withstanding frequent use while maintaining its integrity. Its design prioritizes reliability, ensuring that it functions flawlessly when every second counts. In addition to its robust construction, the CMP000 Series meets all relevant security standards, effectively blending safety and user-friendliness. This combination makes it an essential choice for any facility prioritizing emergency preparedness.checklist_mark_icon-15px

Request An Inquiry

ANSI certification     UL certification

SPECIFICATION

  • Hand

    Non-handed

  • Certificate

    ANSI/BHMA A156.3 grade 2

    UL listed

  • Material

    Stainless steel

    Steel

  • Finish

    Standard: Stainless steel satin, Silver painted

    Optional: Polishing, PVD, Black, Red

  • Lock point

    CMP001: 1 lock point

    CMP003: 1 lock point

    CMP006: 2 lock points

    CMP002: 1 lock point

    CMP009: 2 lock points

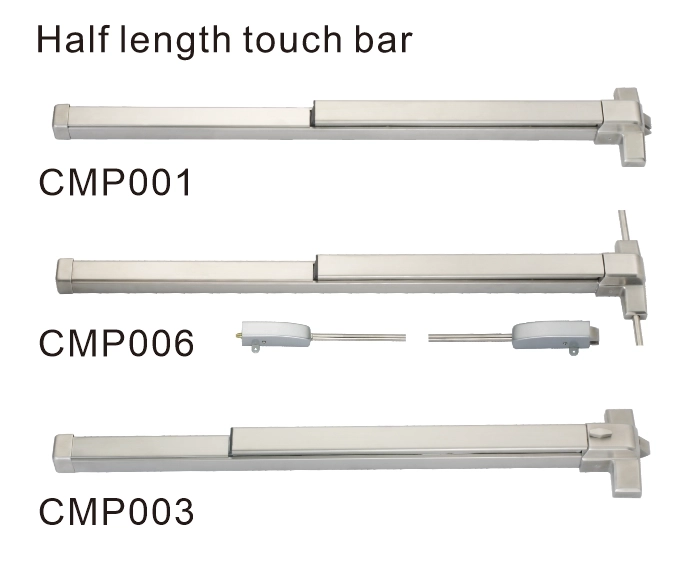

  • Touch bar

    CMP001, 003, 006: Half length of device

    CMP002, 009: Full length of device

  • Device for door width

    24: 24" (610 mm)

    36: 28" to 36" (711mm to 914 mm)

    48: 34" to 48" (864 mm to 1219 mm)

  • Device for door height

    Standard rods accommodate 84" (2134mm)

    Extension rods for 96" (2438mm)

    Special rods for 120" (3048mm)

  • Fasteners & sex bolts

    Screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors

  • Trim lock tumbler

    Cross shape  touch bar panic exit device in cross figure

  • Dogging

    CMP001, CMP006, 002, 009: Hex key

    CMP003: Thumbturn

  • Trim

    CMPA004, 104, 008, 010, 012, 112, 212, 401, 410, 420, 801
