Narrow Stile Crossbar Exit Device, CMP350 Series
The CMP350 Series is a highly reliable crossbar exit device meticulously engineered for narrow stile doors, offering an ideal solution that balances functionality with safety. This device is specifically designed to facilitate quick and easy egress in emergency situations, ensuring that users can exit safely and efficiently. Certified to meet the rigorous EN1125 and EN1634 standards, the CMP350 Series guarantees compliance with stringent safety regulations, providing peace of mind for building occupants and managers alike. Its robust construction and dependable performance make it an excellent choice for various applications, from commercial facilities to public spaces, where both security and ease of use are paramount.


SPECIFICATION
-
- Feature
-
Suitable for narrow stile door
CMP355 works with mortise lock CC 72/85/92mm
Optional: Pullman latch with invisible fixing screws
-
- Hand
-
Handed
-
- Certificate
-
EN1125, categoery 3
EN1634-1, 2-hour fire rated
-
- Material
-
Stainless steel
Steel
Plastic
-
- Finish
-
Standard: Stainless steel satin, Silver painted
Optional: Polishing, PVD, Black, Red
-
- Lock point
-
CMP351: 1 lock point
CMP355: 1 lock point
CMP356: 2 lock points
-

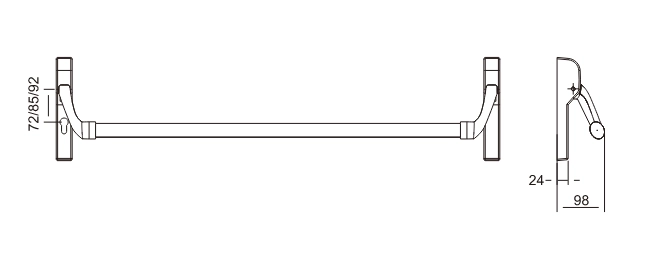

- Device for door width
-
Standard: push bar 850mm, CMP350P/S=960mm; CMP350L= 980MM
Extend length 1200mm (push bar 1100mm)
-
- Device for door height
-
Standard rods accommodate 2200mm
Special rods for 3048mm
-
- Fasteners & sex bolts
-
Screw pack for 44mm to 57mm thick metal or wood doors
-
- Trim lock tumbler
-
Square shape
-
- Dogging, not fire-rated
-
Not available
-
- Trim
-
CMP355 without trim
CMP351, 356: CMPA012, 112, 212
