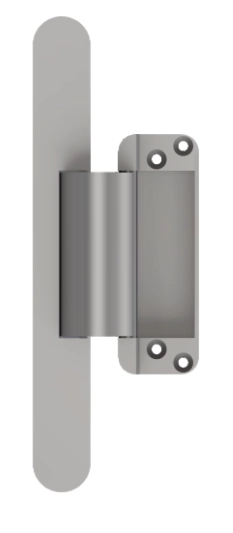

3D Stainless Steel Adjustable Concealed Hinge, CHS430
The CHS430 adjustable concealed hinge is a premium solution crafted from stainless steel 304, offering exceptional strength and durability. This hinge is suitable for wood, casting, steel and aluminum frames, making it adaptable for various door types, including wood doors, steel doors, profile doors and folder doors. Its non-handed design ensures straightforward installation, while the adjustable feature allows for precise alignment and smooth operation. The CHS430 enhances the aesthetic appeal of doors by providing a hidden hinge solution that maintains a clean look. Ideal for both residential and commercial applications, this hinge is a trusted choice for professionals seeking quality and efficiency in door hardware.
SPECIFICATION
-
- Application
-
Wood frames
Casting frames
Steel frames
Aluminum frames
-
- Door
-
Wood door
Steel door
Profile door
Folding door
-
- Material
-
Stainless steel 304
-
- Load capacity
-
160kg
-
- Standard
-
EN1935:2016
-

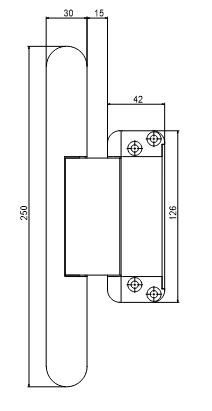

- Length
-
250mm
-

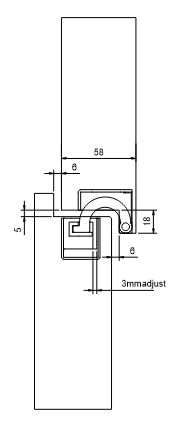

- Minimum door thickness
-
Not less than 40mm
-
- Opening angle
-
Up to 180 degrees
-

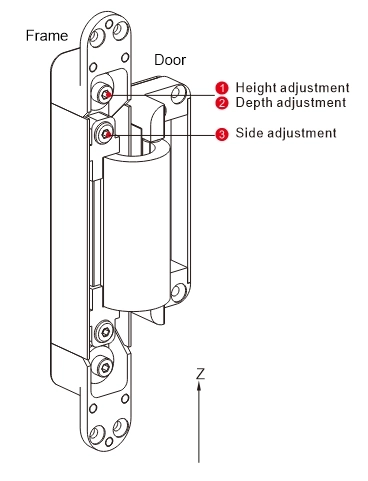

- Continuously adjustable in 3-Dimensions
-
Side: +/- 1.5mm
Height: +/- 3mm
Depth: +/- 1.5mm
-
- Hand
-
Non-handed
-
- Finish
-
SS
PS
AB
PVD
-
- Quantity for single door
-
2pcs
-
- Feature
-
The 3rd hinge will increase loading capacity by 20%. Please refer to the instructions.
