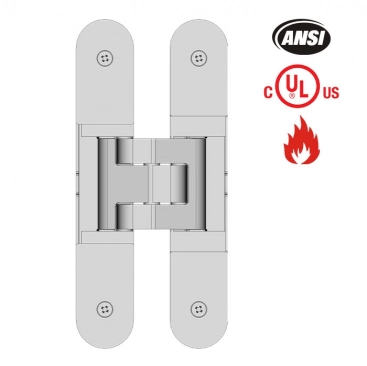

3D Stainless Steel Adjustable Concealed Hinge, CHS340
The CHS340 adjustable concealed hinge offers a sophisticated solution for modern door installations, crafted from durable stainless steel 304 for longevity. Suitable for wood, casting, steel and aluminum frames, this hinge accommodates a variety of door types, including wood doors, steel doors, profile doors and folder doors. Its non-handed design simplifies installation, while the adjustable feature allows for precise alignment and smooth operation. The CHS340 enhances the aesthetic appeal of any door by providing a hidden hinge solution, making it perfect for both residential and commercial applications. This hinge is an excellent choice for professionals seeking quality and versatility.
SPECIFICATION
-
- Certificate
-
ANSI/BHMA A156.1, Heavy Weight, Grade 1 (1,000,000 cycles)
ANSI/BHMA A156.1, Double Weight (200,000 cycles)
UL10C, 3-hour fire rating
-
- Application
-
Wood frames
Casting frames
Steel frames
Aluminum frames
-
- Door
-
Wood door
Steel door
Profile door
Folding door
-
- Material
-
Stainless steel 304
-
- Load capacity
-
250LB (113KG), 1,000,000 cycles
325LB (147KG), 200,000 cycles
-
- Standard
-
ANSI/BHMA A156.1-2021
-
- Length
-
160mm
-
- Minimum door thickness
-
Not less than 35mm
-
- Opening angle
-
Up to 180 degrees
-
- Continuously adjustable in 3-Dimensions
-
Side: +/- 3mm
Height: +/- 3mm
Depth: +/- 1mm
-
- Hand
-
Non-handed
-
- Finish
-
SS
PS
AB
PVD
-
- Quantity for single door
-
2pcs
-
- Feature
-
The 3rd hinge will increase loading capacity by 20%. Please refer to the instructions.
