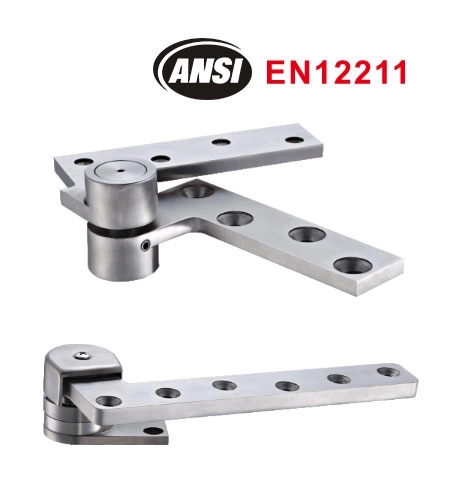

Offset Pivot, AD300
The AD300 offset pivot is a premium solution for wood and steel doors, crafted from durable stainless steel 304. With finishes available in SSS, PVD, and PS, this pivot not only offers exceptional strength but also complements a variety of architectural styles. Its innovative design allows for seamless installation, ensuring smooth and reliable door operation. Suitable for both residential and commercial applications, the AD300 enhances the functionality and aesthetic appeal of any entryway. This offset pivot combines quality and versatility, making it an excellent choice for those seeking dependable door hardware solutions.
SPECIFICATION
-
- Feature
-
Suitable for wooden doors and steel doors
Precision bearings for smooth operation with dust proof
Adjustable for 4.5mm in vertical direction
-
- Certificate
-
ANSI/BHMAA156.4, grade 1
EN12211, 6000Pa
-
- Load capacity
-
700 pounds (320KG)
-
- Hand
-
Non-handed
-
- Minimum door thickness
-
45mm
-
- Material
-
Stainless steel 304
-
- Finish
-
SS
PS
PVD
-
- Notes
-

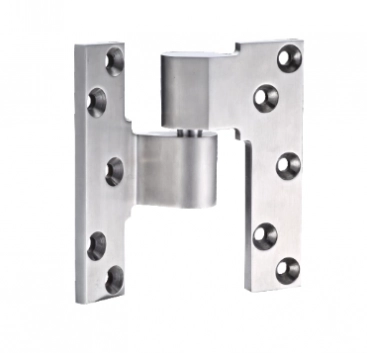

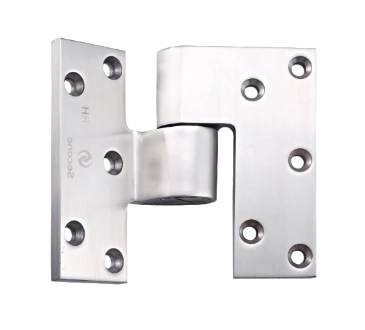

Doors up to 90" (2286mm) in height should use one intermediate pivot.
Each additional 30" (762mm) warrants another intermediate pivot.
NFPA 80, Section 3-3.8 requires intermediate pivot on fire door applications.
Use for door weight over the pivot set limit. One additional intermediate pivot for every additional100lbs (45kg).
