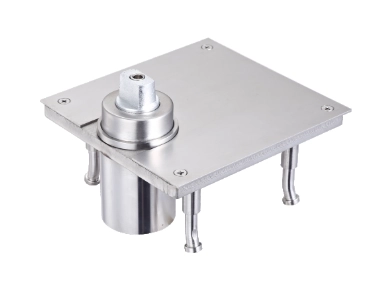

Heavy Duty Offset Pivot, AD500

The AD500 heavy duty offset pivot is engineered for exceptional performance and durability, making it ideal for both wood and metal doors. Constructed from premium stainless steel 304, this pivot offers superior anti-corrosive properties, ensuring longevity in various environments. Its non-handed design allows for versatile installation, accommodating diverse door configurations with ease. Available in finishes of SSS, PSS, and PVD, the AD500 seamlessly blends functionality with aesthetic appeal. This heavy-duty pivot is designed to support substantial weight while ensuring smooth operation, making it an excellent choice for high-traffic areas in both residential and commercial applications.checklist_mark_icon-15px

Request An Inquiry

ANSI certification

SPECIFICATION

  • Feature

    Heavy duty offset pivot

    AD500-800 (with FL800): door weight up to 800kg

    AD500-1000 (with FL1000): door weight up to 1000kg

    Suitable for wooden doors and metal doors, weight up to 1000kg.

    Additional thrust bearing for greater load capacity, dust proof

    Adjustable for 4.5mm in vertical direction

    Door edges must be beveled in 1/8" in 2"

  • Certificate

    ANSI/BHMAA156.4, C07111, grade 1

  • Hand

    Non-handed

  • Minimum door thickness

    50mm

  • Material

    Stainless steel 304, super anti-corrosive, durable and easy to clean

  • Finish

    SS

    PS

    PVD
