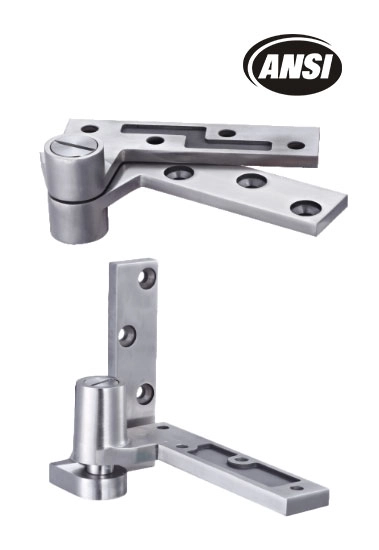

Offset Pivot, AD200-RH/LH

The AD200-RH/LH offset pivot is expertly designed for both wood and steel doors, providing exceptional strength and stability. Constructed from high-quality stainless steel 304, this pivot is available in SSS, PVD, and PS finishes, ensuring both durability and aesthetic appeal. Its versatile design allows for easy installation on right-hand or left-hand doors, making it suitable for various applications. The AD200-RH/LH ensures smooth operation and reliable performance, making it an ideal choice for both residential and commercial settings. This offset pivot combines functionality with modern elegance, enhancing the overall user experience.

Request An Inquiry

ANSI certification

SPECIFICATION

  • Feature

    Suitable for wooden doors and steel doors

    Precision bearings for smooth operation with dust proof

    Adjustable for 4.5mm in vertical direction

  • Certificate

    ANSI/BHMAA156.4, grade 1

  • Load capacity

    550 pounds (250KG)

  • Hand

    Handed

  • Minimum door thickness

    45mm

  • Material

    Stainless steel 304

  • Finish

    SS

    PS

    PVD

  • Notes

    Doors up to 90" (2286mm) in height should use one intermediate pivot.

    Each additional 30" (762mm) warrants another intermediate pivot.

    NFPA 80, Section 3-3.8 requires intermediate pivot on fire door applications.

    Use for door weight over the pivot set limit. One additional intermediate pivot for every additional100lbs(45kg).
