PRODUCTS

Commercial Door & Window Hardware

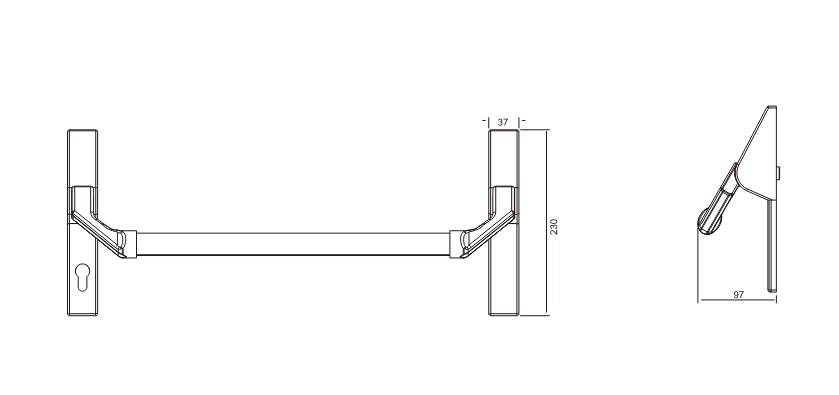

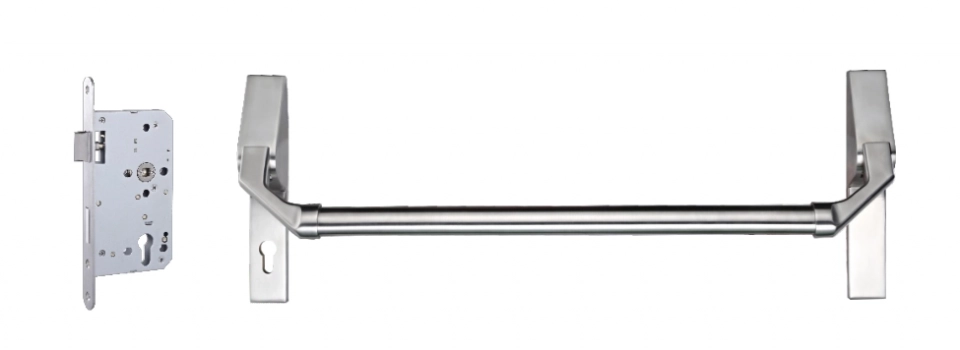

Cross Bar Panic Exit Device with Mortise Lock, CMP341

The CMP341 is expertly designed to meet the stringent EN1125 and EN1634 standards, guaranteeing top-tier safety for users in emergency situations. This cross bar panic exit device is available in a diverse range of finishes, allowing for seamless integration into various architectural styles while enhancing the overall aesthetic appeal of any space. Its robust construction ensures exceptional durability, making it suitable for high-traffic areas where reliability is crucial. By combining both functionality and style, the CMP341 serves as a dependable choice for a variety of applications, from commercial buildings to public facilities, ensuring that safety and design coexist harmoniously.checklist_mark_icon-15px

Request An Inquiry

SPECIFICATION

  • Feature

    Suitable for narrow stile door

    Work with mortise lock CC 72/92mm. The lock must comply with EN1125.

  • Hand

    Non-handed

  • Compliance

    EN1125

    EN1634-1

  • Material

    Stainless steel

    Steel

  • Finish

    Standard: Stainless steel satin, Silver painted

    Optional: Polishing, PVD, Black, Red

  • Device for door width

    Standard 970mm (push bar 850mm)

    Extend length 1220mm (push bar 1100mm)

  • Fasteners & sex bolts

    Screw pack for 44mm to 57mm thick metal or wood doors

  • Trim lock tumbler

    Square shape  square_figure_icon-2 8*8 or 9*9

  • Dogging, not fire-rated

    Not available
