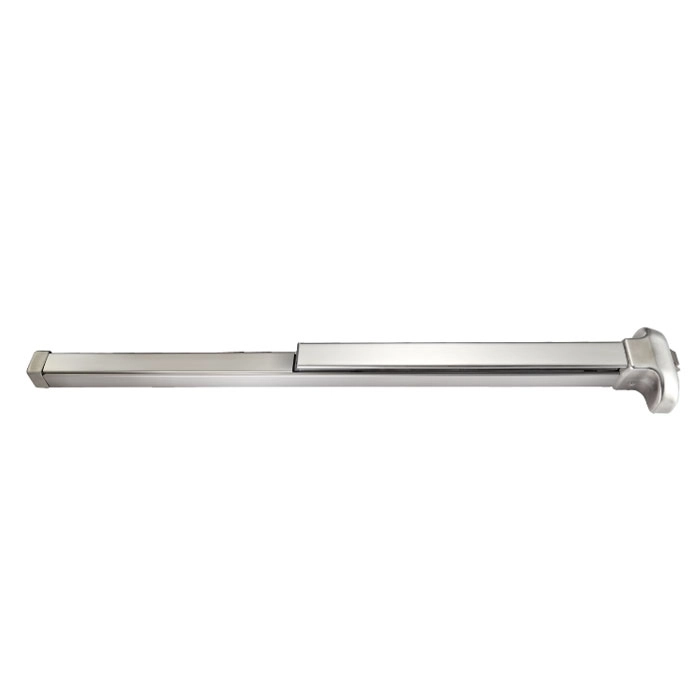

Narrow Stile Panic Exit Device, CMP800 Series

The CMP800 Series is meticulously engineered for high-security applications, featuring an advanced design that incorporates multiple locking points to enhance overall security. This innovative approach ensures that doors remain firmly secured, providing an added layer of protection against unauthorized access. Compliant with rigorous EN1125 and EN1634 standards, these narrow stile panic exit devices are specifically crafted to deliver reliable performance in emergency situations, allowing for swift and safe egress when it matters most. The CMP800 Series combines functionality with durability, making it an ideal choice for commercial buildings, public facilities, and other environments where safety and security are paramount.checklist_mark_icon-15px

Request An Inquiry

SPECIFICATION

  • Feature

    Suitable for narrow stile door

  • Hand

    Non-handed

  • Compliance

    EN1125

    EN1634-1

  • Material

    Stainless steel

    Steel

  • Finish

    Standard: Stainless steel satin, Silver painted

    Optional: Polishing, PVD, Black, Red

  • Lock point

    CMP801: 1 lock point

    CMP806: 2 lock points

    CMP805: 1 lock point

    CMP802: 1 lock point

    CMP807: 2 lock points

  • Touch bar

    CMP801, 806, 805: Half length of device

    CMP802, 807: Full length of device

  • Device for door width

    24: 24" (610 mm)

    CMP801, 806, 805: 34: 28" to 36" (711mm to 914 mm);
    CMP802, 807: 36: 28" to 36" (711mm to 914 mm)

    48: 34" to 48" (864 mm to 1219 mm)

  • Device for door height

    Standard rods accommodate 84" (2134mm)

    Extension rods for 96" (2438mm)

    Special rods for 120" (3048mm)

  • Fasteners & sex bolts

    Screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors

  • Trim lock tumbler

    Cross shape  Camax's touch bar panic exit device in cross figure

  • Dogging, not fire-rated

    Hex key

  • Trim

    CMPA004, 104, 008, 010, 012, 112, 212
