A Practical Guide to Narrow Stile Exit Devices for Commercial Use

In modern commercial architecture, aluminum-framed glass doors have become the standard for storefront entrances, office buildings, and institutional facilities. These sleek, narrow profile doors require specialized panic hardware that differs significantly from traditional steel door applications.

This comprehensive guide explores everything you need to know about narrow stile panic hardware, from basic operational principles to advanced installation techniques and certification requirements. Whether you're specifying hardware for a new construction project or upgrading existing aluminum doors, continue reading to discover how the right panic bar for narrow stile door systems can deliver both safety and sophistication.

What Is a Narrow Stile Exit Device?

A narrow stile exit device, also known as a narrow stile panic bar or narrow stile push bar, is a panic bar for narrow stile doors typically used on commercial aluminum frames, glass storefront systems, and other slim-profile entrances. These openings cannot accommodate standard panic hardware because their stiles are much thinner. The narrow stile exit device solves this by using a compact chassis designed specifically for small aluminum profiles. This type of commercial narrow stile exit device provides reliable life safety performance without compromising door aesthetics or structural integrity.

1. How a Narrow Stile Exit Device Works

A narrow stile panic bar operates by allowing building occupants to push on the touch bar or crossbar to quickly release the latching mechanism during an emergency. When pressed, the internal components retract the latch or rod to open the door instantly. Because narrow stile doors are often used in shops and commercial buildings with high visitor traffic, the reliability of this mechanism is essential. A narrow stile push bar offers the same emergency egress function as a standard panic device, but with a compact structure that fits thin-frame doors.

2. Narrow Stile Exit Device vs Standard Exit Device: Why Choose Narrow Stile?

Standard exit devices are designed for full-width metal or wooden doors. They require more space for their chassis and mounting points. Narrow stile panic hardware, on the other hand, is engineered to suit aluminum storefront doors and other frames with limited mounting area. Many designers prefer narrow stile panic bar products because they fit cleanly on slim doors while still meeting safety codes.

Choosing a narrow stile exit device over a standard device is often the best decision for durability and compliance. The compact mechanism fits properly within available space, mounting hardware integrates with aluminum extrusion profiles, and strike configurations work with narrow frame geometry. For any project involving aluminum storefront doors, entrance systems, or modern glass assemblies, narrow stile panic hardware is not an upgrade but a requirement.

Main Types of Narrow Stile Exit Devices

Camax Hardware has established itself as a leading manufacturer of precision-engineered narrow stile fire exit hardware solutions. Our comprehensive product line is constructed from premium stainless steel, ensuring superior corrosion resistance, longevity, and strength. Every device in our narrow stile portfolio meets or exceeds rigorous certification standards including ANSI/BHMA specifications, UL safety listings, and CE compliance for international projects. These commercial aluminum door panic exit hardware solutions can be installed on fire-rated doors, making them suitable for schools, shopping centers, industrial facilities, and other public buildings.

1. Narrow Stile Rim Exit Device

The narrow stile rim exit device represents the most common configuration for aluminum door panic hardware. In a rim device, the entire mechanism mounts on the interior surface of the door, with the latch bolt projecting horizontally from the device body to engage a strike mounted on the door frame or mullion.

For projects that require dependable rim exit devices for narrow stile doors, Camax offers stainless steel models designed for long-term use in high-traffic areas. These fire-rated narrow stile rim exit device solutions are engineered to provide consistent performance even under frequent operation.

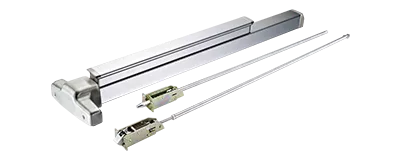

2. Narrow Stile Vertical Rod Exit Device

For applications requiring enhanced security or where double doors need to operate without a center mullion, vertical rod for narrow stile doors provides the optimal solution. Vertical rod exit devices extend rods from the panic mechanism both upward into the door header and downward into the floor or threshold, creating multiple latch points that secure the door without requiring a center strike.

Camax Hardware manufactures both surface and concealed vertical rod configurations for narrow stile aluminum doors. Our surface vertical rod devices provide reliable, cost-effective solutions for functional applications, while our narrow stile concealed vertical rod panic bar systems deliver the premium aesthetics that high-profile projects demand.

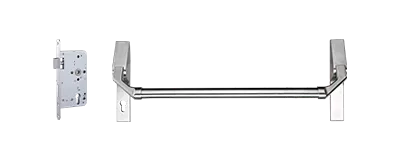

3. Narrow Stile Mortise Exit Device

The narrow stile mortise exit device incorporates a mortise lock into the edge of the door. This type is often chosen when enhanced security is needed, such as in commercial or institutional settings. A narrow stile mortise exit device provides a clean appearance and consistent latch engagement.

Camax Hardware produces narrow stile mortise exit devices for projects where this configuration is specified or where integration with existing mortise lock systems is required. Our mortise devices incorporate the same stainless steel construction, certification compliance, and fire rating options as our rim and vertical rod products. We work closely with door manufacturers and installers to ensure proper pocket preparation and alignment for reliable long-term operation.

FAQ About Narrow Stile Exit Devices

1. How Do I Choose the Right Narrow Stile Panic Bar?

Selecting the right panic bar for narrow stile door frames depends on your door configuration, fire rating requirements, and traffic conditions.

Rim devices are ideal for single doors, while vertical rod options work well for double doors. Mortise models offer additional security when required.

Consulting with Camax Hardware technical specialists ensures you select hardware that meets all regulatory, functional, and aesthetic requirements for your specific project.

2. What Doors Need a Narrow Stile Exit Device?

Any aluminum or slim-profile door used in a commercial environment may require a narrow stile crash bar. This includes storefront systems, glass panel doors, and light commercial doors with narrow frames. These doors benefit from narrow stile panic hardware because it fits properly and maintains required safety standards.

3. Can I Put a Narrow Stile Exit Device on Double Doors?

Yes, you can install narrow stile panic bars on double doors. Many buildings use narrow stile vertical rod panic devices for this purpose, particularly when no center mullion is present. Camax provides both surface-mounted and concealed rod options suitable for different structural and aesthetic preferences.

Contact Camax for High-Quality Narrow Stile Exit Device Manufacturing

Narrow stile exit devices are essential for commercial aluminum doors, offering safe egress, reliable performance, and compatibility with slim profiles. Whether you need rim, vertical rod, or mortise configurations, choosing certified hardware ensures dependable operation and compliance with building requirements.

If you are searching for commercial narrow stile exit device options that combine safety, durability, and certification, Camax delivers a full range of stainless steel solutions engineered for modern buildings.

Contact Camax today to request product details, technical drawings, or a quote for your narrow stile exit device project. Our team is ready to help you choose hardware that performs reliably and meets all necessary standards.
