Fire-Rated Door Handles: UL10C/EN1634 Certified Safety for Commercial Buildings

In commercial buildings, every second counts during a fire emergency. While fire doors play a crucial role in containing flames and smoke, their effectiveness heavily depends on the hardware installed—particularly the door handles. Fire-rated door handles are not just another component; they are a critical safety feature designed to preserve the door's fire- and smoke-resistant properties, even if the handles (such as those made of brass) are completely destroyed during high-temperature exposure. High-traffic environments such as hospitals, airports, schools, and office buildings require commercial door handles that can endure constant use without compromising fire safety.

At Camax Hardware, we specialize in manufacturing certified fire-rated door handles that meet the highest global safety standards, including UL10C and EN1634. This guide will explore what makes these handles unique, the regulations they must comply with, and how to choose the right one for your commercial space.

What Is a Fire-Rated Door Handle?

A fire-rated door handle is engineered to perform under extreme conditions. Unlike ordinary handles, it is constructed from high-grade materials such as stainless steel, which resist melting or warping even when exposed to temperatures between 800°C and 1000°C for 30 to 120 minutes. This ensures that the door remains functional during a fire, allowing for safe evacuation and preventing the spread of flames and smoke.

1. Why Are Fire-Rated Handles Non-Negotiable?

Life Safety – In an emergency, every door must open smoothly. The door handles for fire doors guarantee that occupants can exit quickly.

Fire Door Integrity – If a handle fails, the entire fire door assembly is compromised. Fire door handles maintain the door’s structural resistance, ensuring it performs as designed.

Legal Compliance – Building codes worldwide mandate the use of certified fire-rated hardware. Non-compliance can result in fines, failed inspections, or even legal action in the event of a fire-related incident.

Insurance Validity – Many insurance policies require fire-rated hardware. Using uncertified handles may void coverage, leaving property owners financially vulnerable.

Which Fire Safety Regulations Should Fire-Rated Door Handles Meet?

When selecting door handles for fire doors, it’s important to ensure they meet the appropriate safety standards. These standards ensure that fire door handles can withstand extreme heat, maintain their functional integrity, and help protect building occupants during an emergency. Here are the major global fire safety regulations for door hardware:

Standard	Region	Key Features
UL10C	USA	· Tests the handle's ability to endure fire exposure for 30, 60, 90, or 180 minutes.
EN1634	Europe	· Assesses the integrity and insulation of fire door assemblies. · Ensures handles do not contribute to flame or smoke leakage.
EN1906	Europe	· Classifies handles based on cycle testing, load resistance, and fire performance. · Grade 4 handles (200,000+ cycles) are ideal for high-traffic areas like airports and hospitals.

How to Select Fire-Rated Handles That Will Perform Well in High-Traffic, Commercial Settings?

While safety is the most critical factor, it’s also essential for fire-rated door handles to complement the architectural design of a building. In high-traffic environments like airports and hospitals, handles must endure frequent use while providing aesthetic appeal.

Camax Hardware manufactures a range of door handles for fire doors to meet the needs of diverse commercial spaces. Some options include:

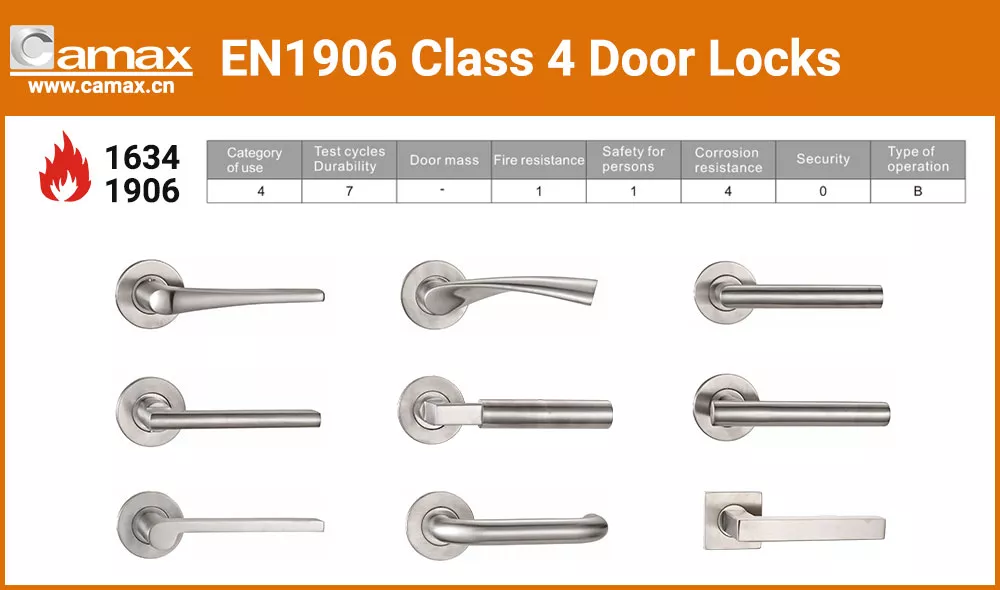

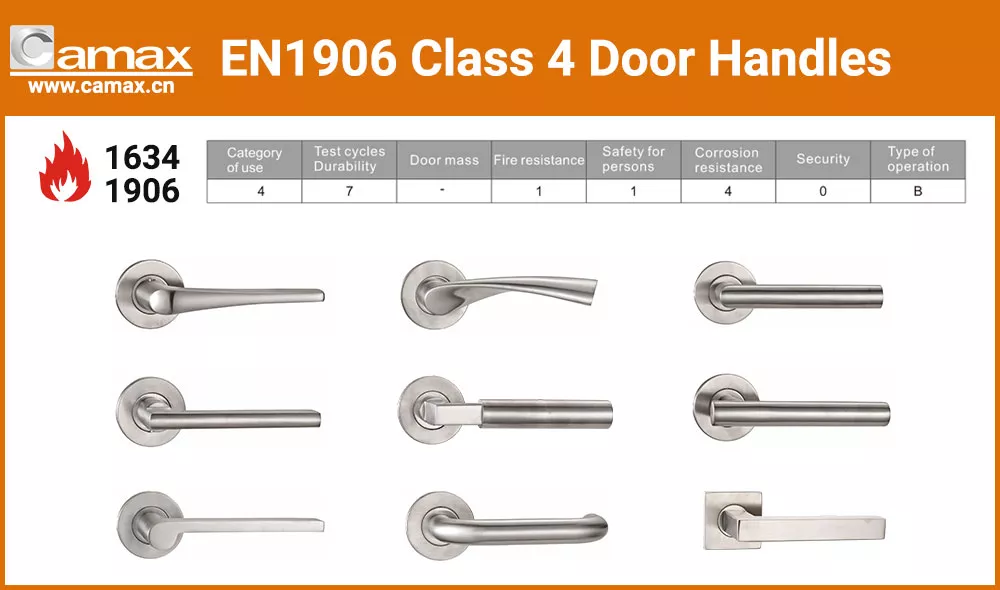

1. EN1906 Class 4 (Heavy-Duty Handles)

Class 4 handles are heavy-duty, designed for high-traffic areas. They are built to withstand 200,000+ cycles and are perfect for environments like airports or shopping centers.

Camax Hardware manufactures EN1906 Class 4 door handles. These door handles for commercial doors are made of stainless steel with a stainless steel substructure. A variety of finishes are available, including satin, polished, PVD, and AB. The lever handle is pivot-fitted in a rose with a height-holding mechanism.

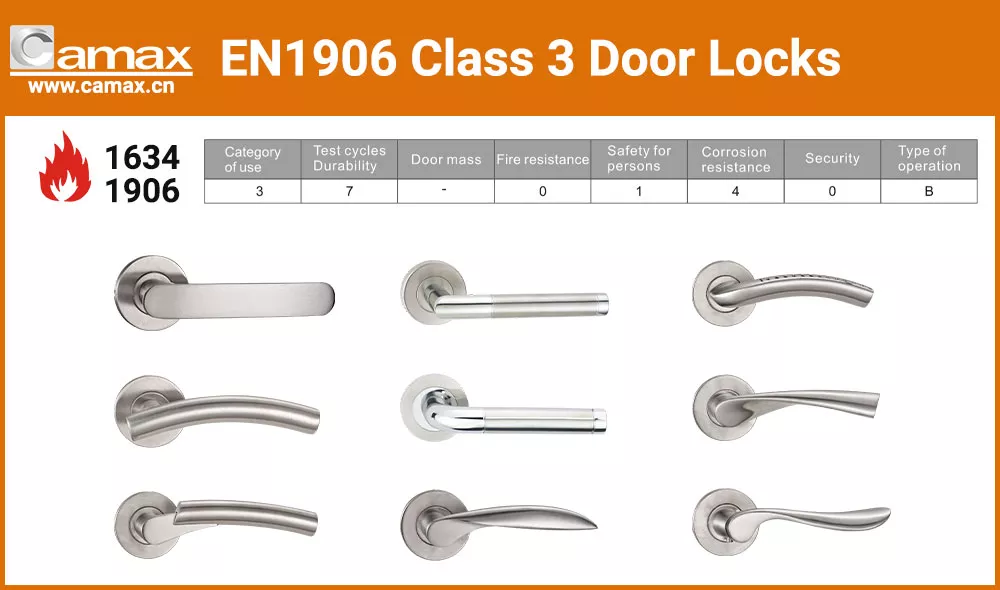

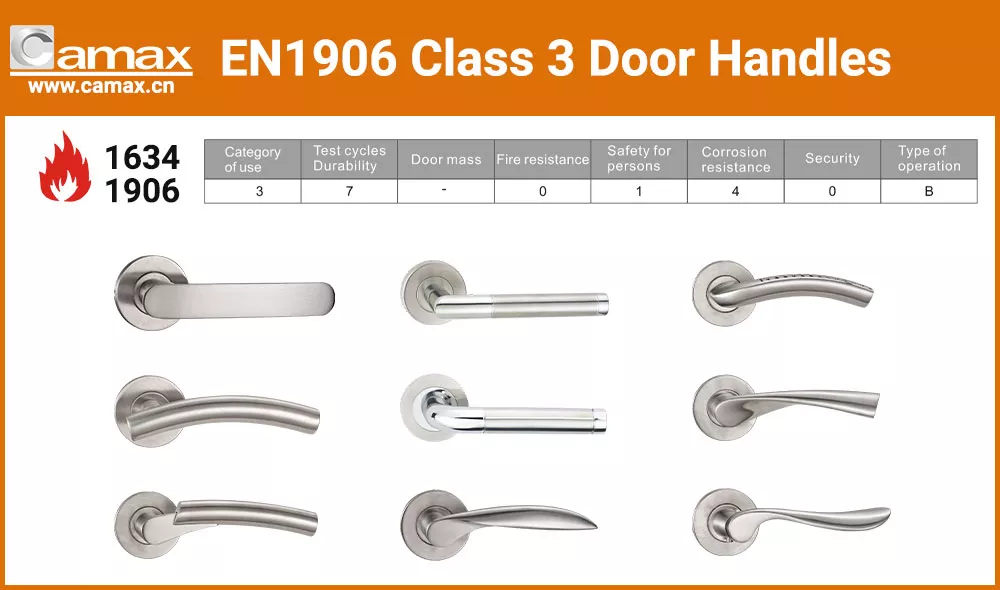

2. EN1906 Class 3 (Medium-Duty Handles)

Class 3 handles are medium-duty and are suited for areas with moderate traffic. They still offer high durability but are ideal for offices or schools.

Camax Hardware produces EN1906 Grade 3 stainless steel lever handles with reinforced substructures. Available in satin, polished, PVD, and antique brass finishes, these durable commercial door handles feature a pivot-fitted rose plate design with height-holding mechanism. Ideal for commercial applications, they combine fire-rated performance with robust construction for reliable, long-term operation.

3. Fire-Rated Push Bars & Cross Bars

Typically paired with fire-rated exit devices, push bars and cross bars are ideal for emergency exits. They allow for quick and easy egress, ensuring safety in crowded or high-traffic settings.

Camax Hardware offers high-quality push bar and cross bar exit devices, specifically designed for emergency exits in commercial and industrial buildings. These fire exit devices are certified to meet UL10C 3-hour fire rated and EN1634-1, ensuring they can withstand high temperatures and maintain functionality during a fire.

Frequently Asked Questions About Fire-Rated Door Handles

Q1: Can a regular door handle be used on a fire door?

No. Only fire-rated door handles are suitable for use on fire doors. Regular door handles are not designed to withstand the intense heat and pressure during a fire, which could cause them to fail and compromise the safety of the building.

Q2: Can fire-rated handles be used on any door?

No. Fire-rated handles must be paired with certified fire doors. They are suitable for most types of fire doors, including wooden, metal, and glass fire doors (when equipped with the appropriate hardware). However, the handle's fire rating should match the door's rating to ensure overall fire safety performance.

Q3: How do I choose the right fire-rated door handle for my building?

When selecting a door handle for fire doors, consider:

The fire rating of both the door and handle, like 30, 60, or 90 minutes.

Building regulations and code requirements in your region.

The type of door, including wood, metal, glass doors.

Accessibility. For example, lever handles are easier to operate than knobs.

Aesthetic preferences that align with the building’s design.

Manufacturer certifications to ensure compliance with safety standards.

Contact Camax Hardware for a Special Quote on Fire-Rated Door Handles

Selecting the right fire-rated door handles is essential for maintaining both safety and compliance in commercial buildings. Door handles for commercial doors that meet fire safety standards such as UL 10C and EN1634 ensure the building’s integrity during a fire emergency and provide a safe egress route.

At Camax Hardware, we offer a wide range of EN1906 Grade 4 fire-rated handles, designed for high-traffic commercial environments and UL10C push bar integrated with exit devices. Our handles are not only durable but also aesthetic, making them the perfect choice for any commercial space.

Need EN1906 Grade 4 and UL10C fire-rated door handles for commercial fire doors? Contact Camax Hardware today!
