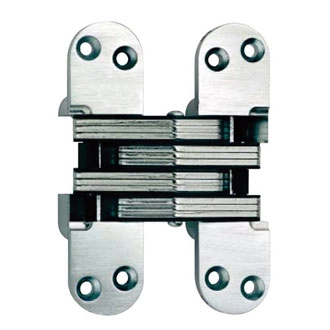

Stainless Steel Invisible Hinge, CHS003

The CHS003 invisible hinge is a premium component made from high-grade stainless steel, designed to deliver both strength and aesthetic appeal. Its innovative design allows for a completely concealed installation, ensuring that the hinge remains out of sight when the door is closed. This feature not only enhances the visual appeal of the door but also promotes smooth and reliable operation. Suitable for various applications, the CHS003 is ideal for both residential and commercial settings. Professionals seeking a combination of durability and style will find this hinge to be an exceptional choice for their door hardware needs.checklist_mark_icon-15px

Request An Inquiry

SPECIFICATION

  • Material

    Stainless steel

    Steel

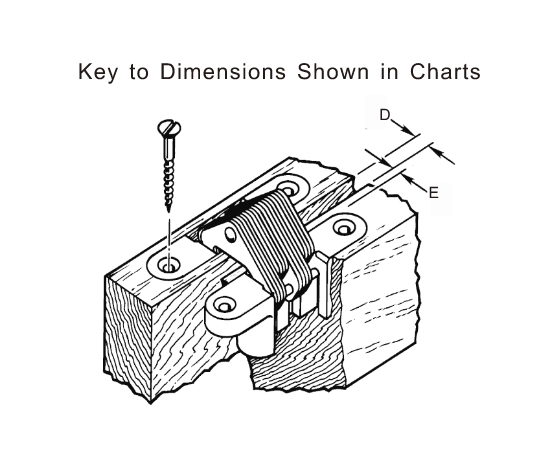

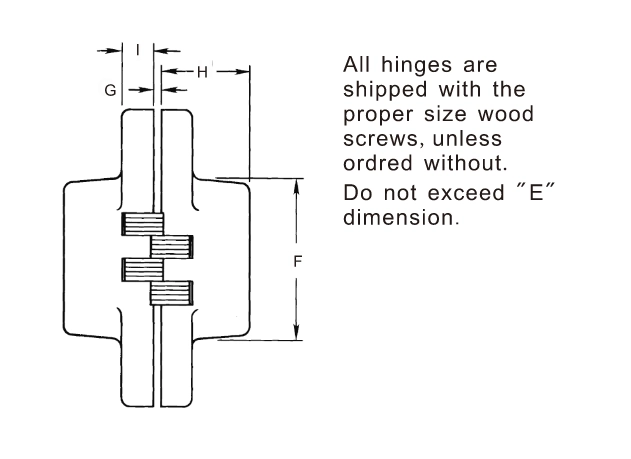

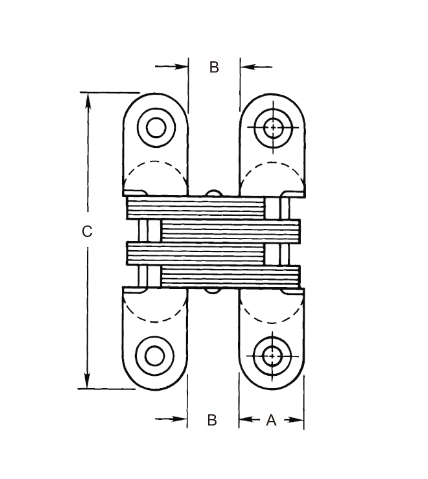

  • Size

    Dimension A: 28.2mm

    Dimension B: 22.7mm

    Dimension C: 117.2mm

    Dimension D: 9.53mm

    Dimension E: 6.35mm

    Dimension F: 61.7mm

    Dimension G: 2.5mm

    Dimension H: 40.5mm

    Dimension I: 10mm
