Why Choose a Mortise Exit Device With Vertical Rod for Commercial Doors?

If you have ever stood in front of a pair of heavy commercial doors and wondered how they stay locked yet open instantly in an emergency, chances are a mortise exit device with vertical rod was doing the work behind the scenes. This type of panic hardware is built for double doors that do not have a center mullion, and it pairs a mortise lock body with rods running along the top and bottom of the door. The result is a setup that keeps the entrance secure day to day while still allowing anyone inside to push the bar and get out safely the moment it matters. In this article, we will walk through how this hardware works, how it compares with other exit device styles, where you are likely to see it installed, and what to look for when choosing a manufacturer to supply it.

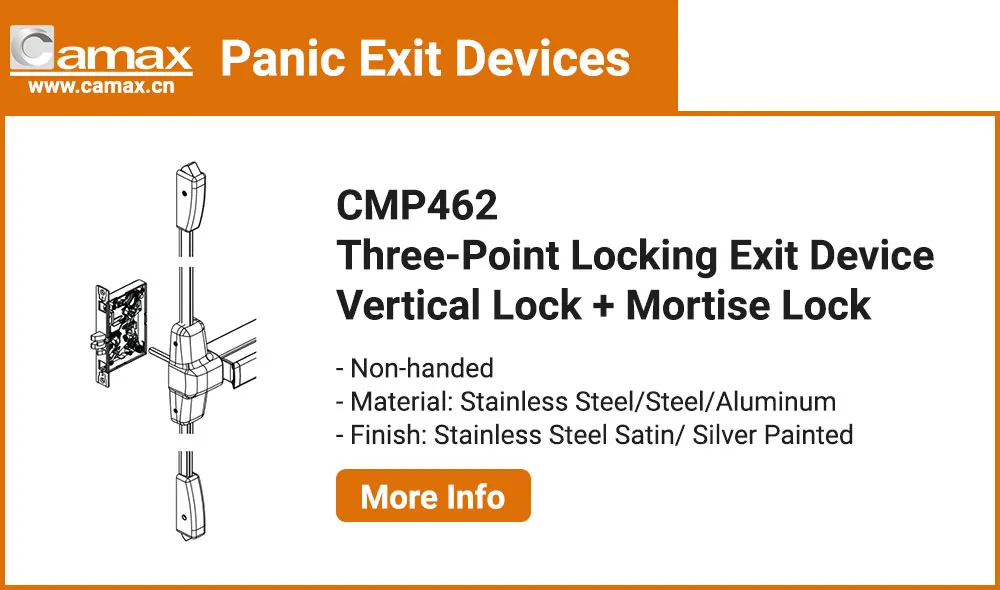

A mortise exit device with vertical rod is panic hardware that integrates a mortise lock, push bar, upper locking rod, and lower locking rod into one complete exit system. It provides secure multi-point locking while allowing immediate egress with a single push.

What Is a Mortise Exit Device with Vertical Rod?

At its core, a mortise exit device with vertical rod is a panic hardware system where the main locking mechanism sits inside a pocket cut into the door itself, rather than being mounted on the surface. That mortised lock body works together with a top rod and a bottom rod that extend from the device up toward the door frame header and down toward the floor. When someone pushes the crossbar, all three locking points release at once, letting the door swing open without hesitation.

The main parts you will typically find in this kind of assembly include the push bar that triggers the release, the mortise lock case that houses the internal mechanism, the top rod and bottom rod that engage the frame, and the latch bolt or lock bolt that actually holds the door shut when it is closed. What sets this apart from a standard rim exit device is exactly that mortised construction. Rim devices bolt the lock case onto the face of the door, while a mortise version hides it inside the door for a cleaner look and often a higher level of pull resistance, and the vertical rods add extra locking points at both the head and the sill of the frame.

What Is a Vertical Rod Exit Device?

Before going further, it helps to step back and answer a more general question that a lot of buyers search for: what is a vertical rod exit device? In simple terms, it is any vertical rod panic exit device, rather than a single side latch, to secure the top and bottom of the opening. There are two common versions on the market.

A surface vertical rod, often shortened to SVR, mounts the rods on the face of the door where they are visible. A concealed vertical rod, or CVR, hides those same rods inside the door, giving a smoother appearance that many architects prefer for upscale projects. A mortise vertical rod exit device sits alongside these as a further variation, since it combines the internal mortise lock with the same top and bottom rod concept, giving you both the security of a mortised lock case and the dual locking points of a vertical rod system.

What Is the Difference Between Mortise and Vertical Rod Exit Devices?

A standard mortise exit device primarily relies on a mortise lock installed inside the door. The locking point is generally located on the edge of the door, making it suitable for many single-door applications and selected commercial entrances.

A standard vertical rod exit device, on the other hand, secures the door using rods that extend upward into the frame and downward into the floor. This design provides additional locking points and distributes holding force more evenly across the entire door.

This is one of the most common points of confusion, so it is worth spelling out clearly. A mortise exit device on its own refers to where the lock sits, inside the door, and it can be used on either single or double doors. A vertical rod exit device refers to how the door is secured at the top and bottom, and it is mainly used on double door openings. The table below breaks down the practical differences.

In practice, a mortise vertical rod exit device is not an either or choice. It merges both technologies into one system, giving you the clean interior locking of a mortise lock along with the added strength of top and bottom rod engagement, which is exactly why so many specifiers reach for it on demanding commercial projects.

What Doors Use a Mortise Exit Device With Vertical Rod?

This style of hardware shows up wherever a building needs both strong day-to-day security and dependable emergency egress. That includes commercial office towers, schools and university buildings, hospitals and clinics, hotels, shopping centers, airport terminals, government facilities, and industrial plants. Anywhere large numbers of people pass through double doors on a regular basis, this hardware tends to be a natural fit.

It is particularly well-suited to double doors without a center mullion, fire-rated openings that need a listed exit solution, dedicated emergency exits, and any entrance that sees heavy daily foot traffic. Because the lock body is mortised into the door and the rods add extra holding points, this configuration holds up well under frequent use while still meeting life safety codes for quick release.

Benefits of a Mortise Vertical Rod Exit Device

Stronger resistance against forced entry compared with a basic latch

Fast, reliable egress in an emergency with a single push

Compatible with fire rated door assemblies

Built to withstand high traffic without frequent breakdowns

Available with a range of trim and finish options

Can be paired with electronic access control systems

Cleaner, more polished appearance thanks to the internal lock body

Long service life even in demanding commercial settings

Camax Hardware Manufactures Mortise Vertical Rod Exit Devices for Double Doors

Choosing the right manufacturing partner is just as important as selecting the right product. High-quality panic hardware requires precision engineering, reliable production processes, and consistent quality control. Camax Hardware has specialized in commercial door hardware for many years, supplying customers around the world with dependable products for commercial and institutional buildings.

As a professional manufacturer of mortise exit devices, Camax develops products that combine reliable security, smooth operation, and long service life. Whether your business serves distributors, contractors, wholesalers, project developers, or private label brands, our engineering and manufacturing teams can provide customized solutions for different markets.

Years of focused experience as a panic hardware manufacturer

Full OEM and ODM production capability

Custom logo and branding on request

Custom packaging designed around your market

Flexible product customization to match project specifications

Strict in house quality control at every production stage

Competitive factory direct pricing

An experienced engineering team for technical support

Established export experience across global markets

Reliable production lead times and fast delivery

Contact Camax Hardware to Manufacture Your Mortise Exit Device with Vertical Rod

A mortise exit device with vertical rod offers an outstanding combination of dependable security, efficient emergency egress, and long-term durability for commercial buildings. By integrating a heavy-duty mortise lock with upper and lower locking rods, this solution delivers multi-point protection while maintaining smooth operation under frequent daily use.

Whether you are specifying hardware for a new construction project or sourcing products for your own brand, selecting a reliable manufacturing partner is essential. High-quality panic hardware not only improves building safety but also reduces maintenance costs and supports long service life.

Camax Hardware is committed to providing reliable mortise vertical rod exit devices, complete OEM and ODM manufacturing services, and professional technical support for customers worldwide. From standard commercial hardware to customized project solutions, our team is ready to help you build products that meet your market requirements.

Looking for a trusted manufacturer of mortise exit devices and mortise vertical rod exit devices?

Contact Camax today to discuss your product requirements, request technical information, or receive a quotation for your next commercial door hardware project.
