Commercial Door & Window Hardware

3D Zinc Alloy Adjustable Concealed Hinge, CHS812

The CHS812 3D zinc alloy adjustable concealed hinge is designed for optimal performance and durability, suitable for wood and zinc alloy doors. Featuring a 3D adjustment mechanism, this hinge allows for precise control over depth, height, and side alignment, ensuring a perfect fit and smooth operation. Its non-handed design simplifies installation, providing flexibility for various applications. Made from high-quality zinc alloy, the CHS812 combines strength with an elegant appearance, making it ideal for both residential and commercial environments. This hinge is a dependable choice for professionals seeking quality and functionality in their door hardware solutions.checklist_mark_icon-15px

Request An Inquiry

SPECIFICATION

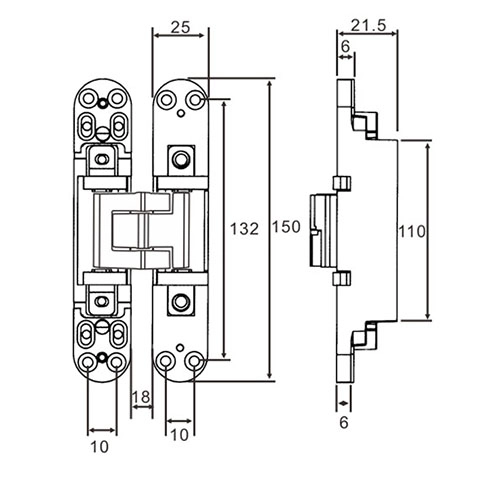

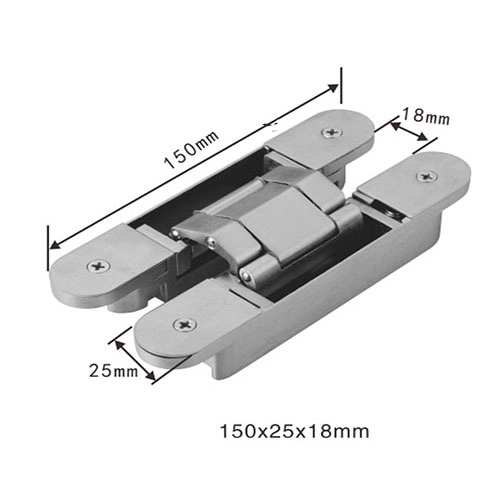

  • Size

    150x25x18mm

  • Application

    Wood door

    Zinc alloy door

  • Feature

    Hidden installation

  • Material

    Zinc alloy

  • Load capacity

    60kg (2pcs)

  • Door width

    1000mm

  • Door height

    More than 2100mm, need 4pcs

  • Minimum door thickness

    35mm

  • Opening angle

    Up to 180 degrees

  • Continuously adjustable in 3-Dimensions

    Side: +/- 3mm

    Height: +/- 3mm

    Depth: +/- 1mm

  • Hand

    Non-handed
