Security management in modern buildings requires flexibility, efficiency, and reliable hardware. Many facility managers are choosing the small format interchangeable core system because it allows fast key control and simple maintenance without removing the entire lock. By making the lock cylinder itself removable in seconds, facility managers gained the ability to change cores on the spot, without tools, without downtime, and without calling a contractor. The result is a level of rapid key control that was simply not possible with conventional lock hardware.
This guide explains what is a small format interchangeable core, how it works, how to change it, and why it is widely used in commercial environments. It also introduces professional manufacturing solutions designed for long-term security performance.
Table of contents
What Is a Small Format Interchangeable Core?
A small format interchangeable core cylinder (SFIC) is a removable lock cylinder that can be taken out of a lock body and replaced with another core, all without removing the lock from the door and without any special tools.
Key characteristics of a small format interchangeable core cylinder include consistent sizing, compatibility with master key systems, and reliable performance in high traffic environments. These features make the small format interchangeable core an essential component in professional security systems.
1. How To Change a Small Format Interchangeable Core?
One of the most practical reasons facilities switch to SFIC is the simplicity of how to change a small format interchangeable core. The process requires only the control key and the replacement core.
Insert the control key into the core while it is seated in the lock body.
Rotate the control key to the control position, typically about 90 degrees. This disengages the locking lug inside the cylinder.
Remove the core by pulling it straight out from the front of the lock body. The control key comes out with the core.
Insert the replacement core into the lock body, pushing it in firmly until it seats properly.
Remove the control key. The new core is now active and the lock is ready for use with its new operating key.
This process answers the common questions of how interchangeable cores work and how a small format interchangeable core works: the control key temporarily unlocks an internal lug that holds the core in place, allowing the core to slide free. Without the control key, the core cannot be removed, which is an important security feature in itself.
2. What a Control Key for SFIC Cores Is Used For?
The small format interchangeable core control key is a dedicated key that is separate from the operating key used day to day. Its sole function is to remove and install cores. When someone asks whether I need a control key for an SFIC core, the answer is yes. Without the control key, how do I remove a small format interchangeable core becomes a much harder problem.
The control key plays a critical role in security management. It ensures that only authorized personnel can perform maintenance or change access permissions. This feature protects buildings from unauthorized lock modifications and maintains system integrity.
What Are the Benefits of Small Format Interchangeable Cores?
When comparing SFIC to conventional cylinders, the advantages become clear quickly. Here is a look at the core benefits that answer why use small format interchangeable cores instead of regular cores.
Fast replacement: A core swap takes under a minute, compared to 20 to 30 minutes for a traditional cylinder replacement.
Reduced labor cost: Facility staff can swap cores themselves, eliminating the need for a licensed locksmith for every change.
Centralized key control: Master key hierarchies allow administrators to manage access for entire buildings from a single system.
Scalable security: Add, remove, or reassign access zones as your facility grows, without replacing lock hardware.
Standardized hardware: One core format works across many lock types and brands, simplifying purchasing and inventory.
Lower downtime: Doors stay in service during a core replacement, meaning zero disruption to daily operations.
It is also worth noting why some SFIC cores need to be replaced rather than rekeyed. When a key is compromised, rekeying requires sending the cylinder to a locksmith. With SFIC, the faster and more secure response is simply to swap the core entirely, which takes seconds and immediately invalidates the lost or stolen key.
Camax’s Professional Cylinder Solutions For ANSI Mortise Lock Systems
Camax designs and manufactures professional SFIC cylinders and integrated mortise lock built to the strictest international standards. Here are two products worth knowing about if you are evaluating SFIC solutions.

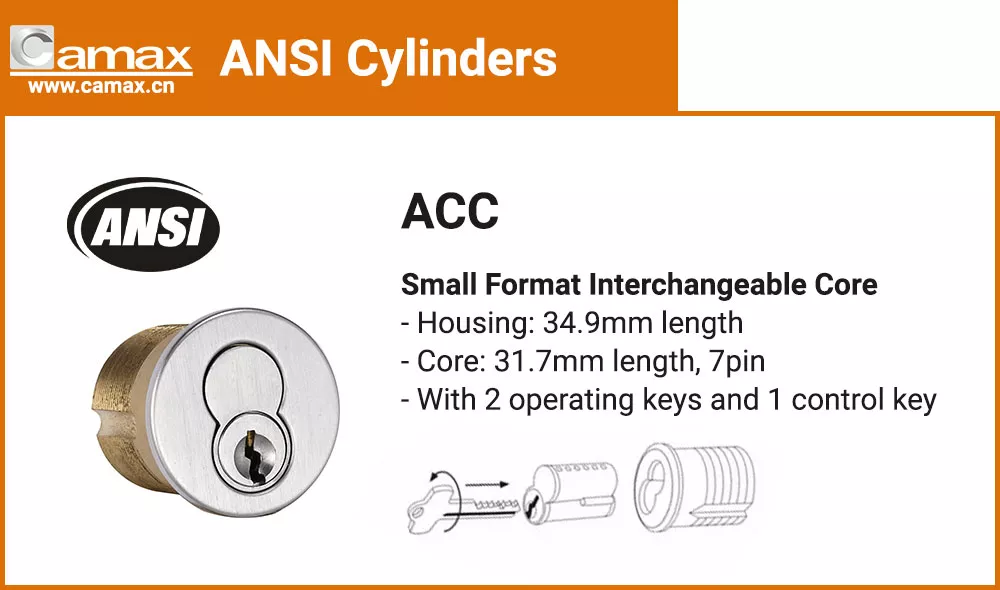

1. ACC, Small Format Interchangeable Core Cylinder Integration
The ACC provides a reliable small format interchangeable core cylinder designed for integration into ANSI mortise locks. These products are certified to ANSI and BHMA Grade 1 performance standards, ensuring dependable operation in demanding commercial environments.
Using a certified small format interchangeable core system improves security management and simplifies maintenance planning. Facility managers benefit from consistent hardware performance and predictable replacement procedures.

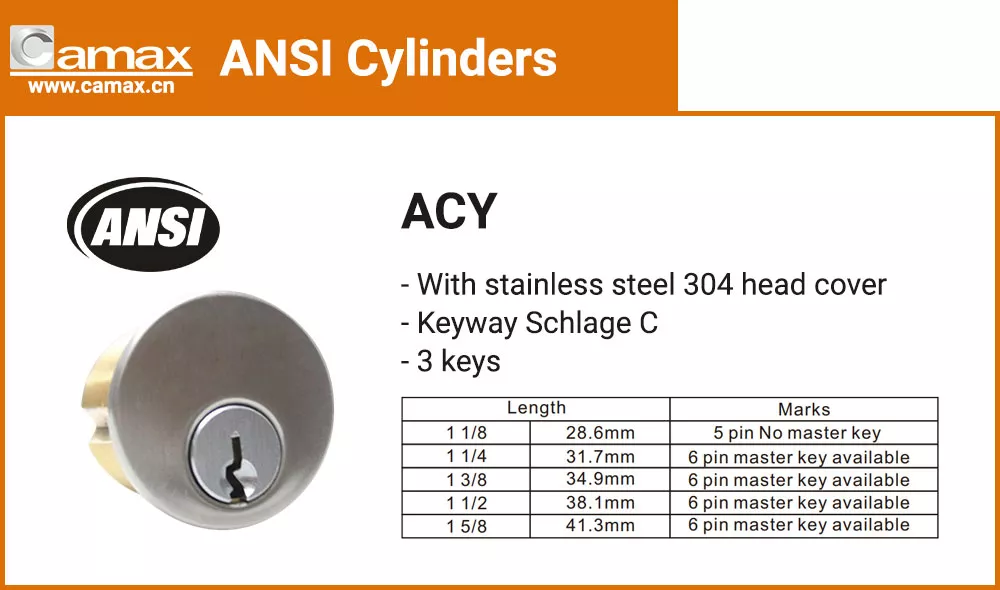

2. ACY, ANSI Door Cylinder For Commercial Applications
The ACY includes durable ANSI door cylinders engineered for long service life. These cylinders are manufactured to meet strict performance requirements and are suitable for use in office buildings, healthcare facilities, and educational institutions.
Why Choose Camax As Your Small Format Interchangeable Core Manufacturer
Selecting a dependable small format interchangeable core manufacturer is essential for maintaining consistent product quality and long-term security performance. Professional manufacturing capabilities ensure accurate tolerances, durable materials, and reliable functionality.
Camax specializes in producing advanced small format interchangeable core systems designed for commercial and institutional applications. The company manufactures precision small format interchangeable core cylinders that are compatible with major key systems and international hardware standards.
Camax also integrates SFIC technology into ANSI mortise locks. This combination allows building owners to use strong mechanical locks while maintaining the flexibility of interchangeable core systems. The design simplifies maintenance, improves key control, and supports scalable security planning.
With modern production equipment and strict quality inspection procedures, Camax delivers stable product performance and dependable supply for distributors, contractors, and security hardware brands worldwide.
Common Applications For Small Format Interchangeable Core Systems
One of the most frequently asked questions is what are the common applications for SFIC cores and which types of locks use them. The short answer: almost any commercial or institutional setting where key control matters.
Office buildings with multiple departments
Schools and universities with changing staff access
Hospitals requiring secure patient areas
Hotels managing guest room security
Government facilities with controlled entry points
Retail stores protecting inventory and storage rooms
Why are SFIC cores used in office buildings and schools specifically? Because those environments experience the most frequent personnel changes. A university dorm that turns over every academic year, or an office floor that onboards and offboards dozens of employees each quarter, simply cannot afford the time or cost of traditional rekeying. SFIC makes security management fast enough to keep up with the pace of real operations.
Contact Camax to Upgrade Your Access Control for Commercial Buildings
The small format interchangeable core has earned its place as the preferred lock cylinder format for commercial and institutional environments. It reduces the time and cost of security changes, supports master key hierarchies, and works across a wide range of hardware. Whether you are outfitting a new building or modernizing an existing one, SFIC technology offers a level of key control and operational efficiency that fixed cylinders simply cannot match.
For facility managers, contractors, and security consultants evaluating their options, the practical advantages are clear: faster response to security events, lower labor costs, and a standardized system that scales with your needs.
Contact Camax today to receive technical support, product specifications, and competitive quotations for commercial locking systems.
