Modern commercial buildings rely heavily on secure and reliable door hardware. One essential component is the narrow stile mortise lock, a specialized locking mechanism designed for slim door frames commonly found in storefront and aluminum entrance systems. As businesses focus on safety, durability, and smooth operation, choosing the correct mortise lock for narrow stile doors becomes an important decision.
Today, retail stores, office buildings, hospitals, and public facilities widely use aluminum and glass doors with narrow frames. These doors require a dedicated commercial narrow stile mortise lock that fits within a limited space while maintaining strong performance and security. This guide explains how these locks work, where they are used, and how to select the right model for your project.
Table of contents
What Is a Narrow Stile Mortise Lock?
A narrow stile lock is a mortise lock whose body is slim enough to be housed inside a door with a narrow vertical rail. Where a conventional mortise lock body might be 20 mm or more in width, a narrow stile door mortise lock is machined to fit comfortably within a much tighter pocket, typically matching backsets of 25 mm to 45 mm.
Despite the compact form factor, these locks do not cut corners on features. A well-made narrow stile mortise lock will typically include:
A slim, precision-machined lock body
Shorter backset options to suit tight frames
High-grade stainless steel or zinc alloy components for corrosion resistance
Commercial-grade latch and deadbolt mechanisms rated for heavy daily use
1. What Types of Doors Are Narrow Stile Mortise Locks Suitable For?
The narrow stile mortise locks are suitable for almost every door you would find in a modern commercial or institutional building. Narrow stile mortise locks for glass doors are among the most common applications. These locks are widely used across multiple commercial and institutional environments.
Aluminum storefront doors
Glass entrance doors
Office building entry doors
Retail shop doors
Restaurant and hospitality doors
Healthcare and hospital doors
Shopping mall entrances
For example, a narrow stile mortise lock for glass door provides both security and smooth operation while preserving the modern appearance of glass entrances.
2. How Does a Narrow Stile Mortise Lock Work in Daily Operation?
The operating principle behind a mortise lock narrow stile is the same as any mortise lock, just packaged more compactly. The key components are the lock body, the cylinder, the spindle, the latch bolt, and the deadbolt.
When someone turns a key, the cylinder rotates and drives an internal cam. That cam either retracts or extends the deadbolt, locking or releasing the door. Turning the lever or knob on the spindle operates the latch bolt separately, allowing the door to open when unlocked. Because the entire mechanism sits inside a pocket routed into the door edge, nothing protrudes beyond the face of the door, which is exactly why this style of lock suits narrow aluminum stiles so well.
Why Narrow Stile Mortise Locks Are the Standard Choice for Aluminum Storefront Doors?
Aluminum storefront doors are manufactured with a frame width that simply cannot accommodate a full-size mortise lock body. The stile width is optimized to hold the glass, seal the perimeter, and look architecturally proportional. Drilling out extra space to fit a larger lock would weaken the frame and void most manufacturer warranties.
A purpose-built aluminum narrow stile door lock fits the pocket that is already machined into the aluminum extrusion. This gives you several practical advantages:
Space efficiency: The lock body occupies only the space that is available, with no grinding or frame modification needed.
Structural integrity: The door frame stays intact, maintaining its load-bearing and sealing properties.
Security: A correctly sized mortise lock for narrow stile aluminum door engages the strike plate fully, providing reliable deadbolt throw and latch retention.
Code compliance: Commercial buildings in most jurisdictions require hardware that is rated for egress and commercial-grade use. Narrow stile mortise locks meet those requirements when specified correctly.
As a result, the mortise lock for narrow stile aluminum door has become the industry standard for storefront entrances and commercial facilities.
What Is the Difference Between a Narrow Stile Mortise Lock and a Standard Mortise Lock?
If your door is aluminum or glass, a standard mortise lock is almost certainly the wrong tool. A purpose-designed narrow stile door lock is not just a preference but a practical necessity.
| Feature | Narrow Stile Mortise Lock | Standard Mortise Lock |
|---|---|---|
| Door Type | Aluminum or glass doors | Wood or steel doors |
| Backset range | 25 mm to 45 mm (short backset) | 45 mm to 60 mm (standard backset) |
| Lock Body Width | Slim design | Wider design |
| Typical Application | Storefront entrances, offices, retail, hospitality | Residential or heavy commercial doors |
This comparison shows why a specialized commercial narrow stile lock is required for modern aluminum door systems.
Popular Types of Narrow Stile Mortise Locks Used in Commercial Buildings
There are several configurations available depending on security requirements and door design. Each type of narrow stile mortise lock is engineered for specific applications.
Camax manufactures multiple European mortise locks for narrow stile doors, including exit locks, classroom locks, narrow latch locks, narrow dead locks, and roller locks. The latch bolt and deadbolt components are made from stainless steel 304 to provide corrosion resistance and long service life.
(product image + info)

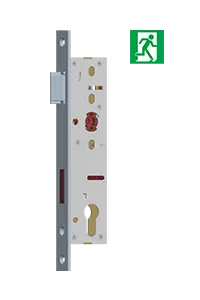

- • Exit Lock
- • Panic function: Key to unlock; Non-handed; Without strike plate.
- • In unlocked position: Latch bolt is operated from both sides by lever handle/key action.
- • In locked position: Inside lever handle retracts latch and dead bolt simultaneously; Deadbolt operated by key.
- • Compliance with: EN12209; EN179; EN1125.

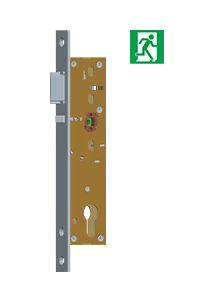

- • Classroom lock
- • Lock case seal, zinc plated.
- • Latch made of stainless steel 304.
- • 8mm square steel follower in steel
- • Hole for standard fixings
- • Non-handed

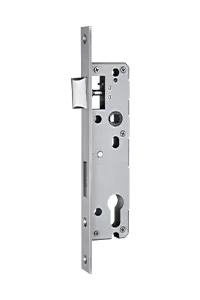

- • Narrow Lock
- • Lock case seal, zinc plated.
- • Latch and bolt made of stainless steel 304.
- • Bolt projection, double throw, 16mm.
- • 8mm square steel follower in steel
- • Hole for standard fixings
- • Non-handed
- • EN12209 in preparation

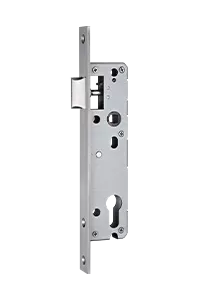

- • Narrow latch lock
- • Lock case seal, zinc plated.
- • Latch made of stainless steel 304.
- • 8mm square steel follower in steel
- • Hole for standard fixings
- • Non-handed
- • EN12209 in preparation

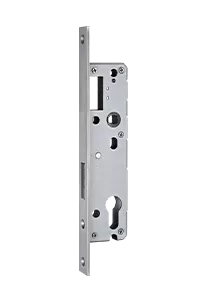

- • Narrow dead Lock
- • Lock case seal, zinc plated.
- • Bolt made of stainless steel 304.
- • Bolt projection, double throw, 16mm.
- • Hole for standard fixings
- • Non-handed
- • EN12209 in preparation

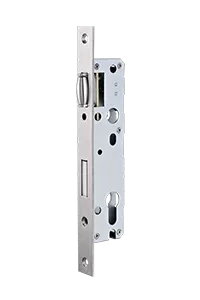

- • Roller lock
- • Lock case seal, zinc plated.
- • Roller latch made of stainless steel 304.
- • Hole for standard fixings
- • Non-handed
- • EN12209 in preparation
Camax, Narrow Stile Mortise Lock Manufacturer With OEM and ODM Services
Camax has spent over 20 years developing and refining a full line of commercial narrow stile mortise locks for aluminum and glass door systems. The engineering focus is on three things: dimensional accuracy, material quality, and smooth operation over a long service life. These are not qualities you want to compromise on when a lock is used hundreds of times a day.
Our products are widely installed in:
Commercial office buildings
Retail stores
Hotels and hospitality facilities
Hospitals and healthcare centers
Public infrastructure projects
Our narrow stile mortise lock for aluminum door products are stocked and regularly shipped to customers across Europe, North America, the Middle East, Southeast Asia, and beyond. We work closely with door manufacturers, hardware distributors, and architectural specification teams to make sure our products fit correctly and perform to spec.
Camax offers flexible production services for global customers, including:
OEM narrow stile mortise lock manufacturing
ODM narrow stile mortise lock development
Packaging customization
Technical engineering support
Stable large scale production capacity
Camax focuses on delivering reliable narrow stile door lock solutions that combine strong materials, precise manufacturing, and consistent quality control for international markets.
How to Choose the Right Narrow Stile Mortise Lock for Your Door?
Choosing the right mortise lock for narrow stile doors is not complicated once you know the variables. Here is a straightforward way to think it through.
Step 1: Identify Your Door Type
The first step is identifying the door material. A narrow stile mortise lock for aluminum door may have different specifications compared with a lock used for glass or steel doors.
Step 2: Measure the Backset
The backset is the distance from the edge of the door to the center of the keyhole or cylinder. Common options for narrow stile applications are 25 mm, 30 mm, 35 mm, and 45 mm. Measuring this accurately before ordering will save you the hassle of a return. If you are unsure, check the door manufacturer's specification sheet or contact us directly.
Step 3: Check Door Thickness
Most aluminum commercial doors fall in the 35 mm to 45 mm thickness range, though some heavier-duty frames reach 50 mm. The lock spindle length and trim hardware must match the door thickness, so this measurement matters just as much as the backset.
Step 4: Define the Security Level
A narrow stile deadbolt lock provides the highest level of bolt security. A latch-only configuration prioritizes convenience and traffic flow. For most commercial spaces, a combination latch and deadbolt within a single narrow stile mortise lock body gives you the best of both.
Contact Camax to Get Reliable Narrow Stile Mortise Lock Solutions for Modern Commercial Doors
The narrow stile mortise lock plays a critical role in ensuring the security and functionality of modern aluminum and glass door systems. From storefront entrances to office buildings, selecting the correct mortise lock for narrow stile doors improves safety, durability, and long-term reliability.
Camax has the product range, the technical depth, and the export infrastructure to support hardware projects of any scale, whether that is a single building specification or a container order for a regional distribution network. We stand behind our products with strict quality control at every production stage, so you can be confident in what you are putting into your doors.
Contact Camax today to get product specifications, discuss OEM or ODM projects, and receive a quotation for your commercial door hardware needs.
