An L shaped panic handle is a type of emergency exit device designed for commercial doors, glass entrances, and architectural applications. Unlike traditional straight panic bars, an L shaped panic handle uses a vertical and horizontal operating structure that provides a modern appearance while allowing occupants to quickly open the door during an emergency.
The unique design of an L shaped exit device makes it especially popular for buildings where both safety performance and visual appearance are important. It is commonly installed in office buildings, shopping malls, hospitals, airports, schools, hotels, and other commercial facilities.
As modern architectural projects increasingly use glass and aluminum doors, the demand for stylish emergency exit solutions continues to grow. An L shaped panic device provides reliable emergency egress while maintaining a clean and premium door appearance.
Table of contents
What Is an L Shaped Panic Handle?
When people search for What is an L shaped panic handle?, they are usually looking for information about a special type of panic hardware used on emergency exit doors.
At its core, an L shaped panic handle is a life safety device that allows someone to open a locked door from the inside simply by pushing on the handle, with no key, code, or twisting motion required. The hardware is typically made of stainless steel or aluminum alloy and mounts vertically on the door stile, with the horizontal portion of the L extending outward as the push surface.
An L shaped panic handle normally consists of several important components:
The L shaped push handle itself, mounted at a height that is easy to reach in a hurry
An internal latch mechanism connected to the handle spindle
A strike plate or keeper set into the door frame or floor
Optional cylinder or keyed lock for controlling access from outside
The main purpose of this type of L shaped panic hardware is to provide safe and fast exit during emergencies while preventing unauthorized access from the outside.
Depending on the project requirements, an L shaped emergency exit handle can be configured with different functions, including keyed locking, dogging function, vertical rod systems, and compatibility with single or double doors.
How Does an L Shaped Panic Handle Work?
The mechanics behind an L shaped panic device are refreshingly simple, which is exactly the point. In an emergency, people should not have to think about how to operate the door. The process happens in four quick stages.
First, applying pressure to the handle rotates an internal spindle. This pulls the latch bolt back into the door edge, so nothing is holding the door closed anymore. With the latch retracted, the door swings open freely, allowing rapid exit even under crowd pressure. Once the door closes again, the spring loaded latch automatically extends back into the strike, resecuring the opening without anyone needing to lock it manually.
This self relocking behavior is one of the main reasons an L shaped door panic bar is trusted in high traffic public buildings. It restores security automatically after every use, which matters in hospitals, schools, and offices where doors are opened dozens of times a day.
Where Are L Shaped Panic Handles Used?
A major advantage of an L shaped panic handle is its flexibility in different commercial door applications. Compared with traditional panic bars, the L shaped design is often selected for projects that require better aesthetics and architectural integration.
1. L Shaped Panic Handle for Glass Doors

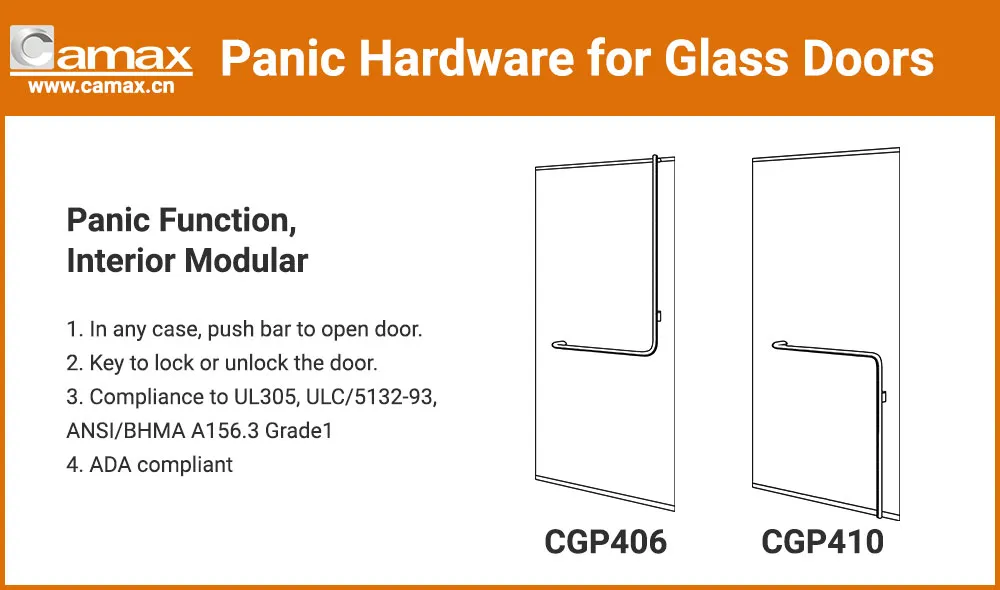

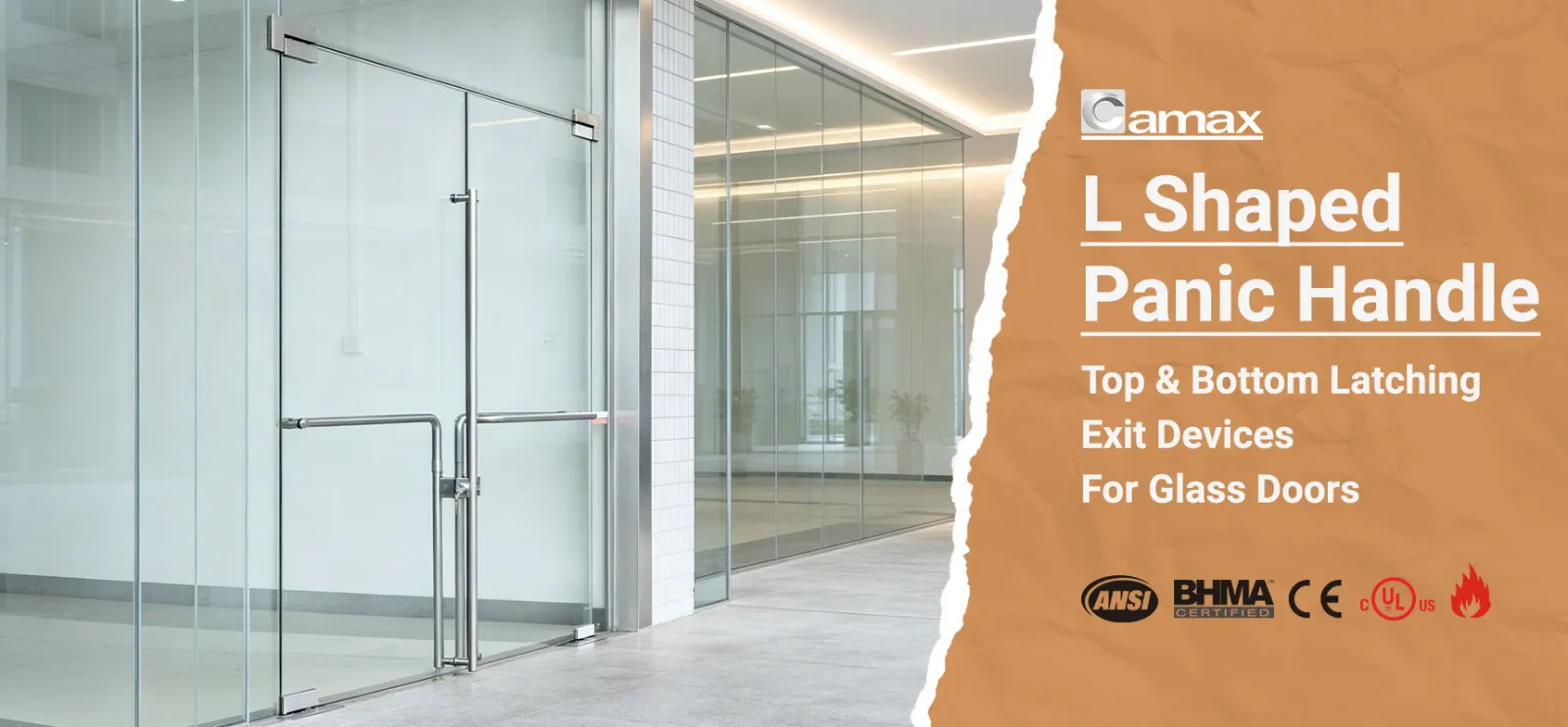

One of the most common applications is the L shaped glass door panic handle. Glass entrances are widely used in modern buildings because they create an open and attractive appearance. However, these doors still require reliable emergency exit hardware.
An L shaped panic handle for glass doors provides a practical solution for tempered glass and aluminum framed glass doors. Its compact design helps maintain the appearance of the entrance while providing emergency exit functionality.
For commercial glass applications, an L shaped panic bar for tempered glass can be designed to work with different door configurations and project requirements.
2. Commercial Buildings and Public Facilities
An L shaped commercial door handle is widely used in commercial buildings because it combines safety and modern design. Typical applications include:
Retail stores requiring emergency exits
Office buildings with high traffic areas
Hotels requiring premium door hardware
Healthcare facilities requiring reliable evacuation systems
Educational buildings with strict safety requirements
An L shaped exit device for commercial doors can be customized according to door material, traffic level, and installation requirements.
3. Interior and Architectural Applications
Besides emergency exits, an L shaped interior panic handle can also be used for interior doors where controlled access and modern appearance are required.
Architects and contractors often choose L shaped glass door panic hardware because it provides both functional safety and a clean visual design.
L Shaped vs Straight Panic Bar: What Is The Difference?
When selecting emergency exit hardware, many architects, distributors, and contractors ask: What is the difference between L shaped and straight panic bars? Both products are designed to provide emergency egress, but their appearance, applications, and installation preferences are different.
| Feature | L Shaped Panic Handle | Straight Panic Bar |
|---|---|---|
| Appearance | Modern and architectural design suitable for premium projects | Traditional commercial appearance |
| Glass Door Applications | Excellent choice for glass and aluminum entrances | Less commonly selected for frameless or architectural glass doors |
| Commercial Aluminum Doors | Excellent performance and aesthetic integration | Suitable for many standard commercial doors |
| Design Style | High-end architectural appearance | Industrial and functional appearance |
| Typical Applications | Hotels, offices, shopping centers, modern buildings | Warehouses, factories, schools, general commercial buildings |
The main reason why customers choose an L shaped panic device instead of straight panic hardware is appearance. Modern buildings often use large glass areas, aluminum frames, and minimalist designs. A traditional horizontal panic bar may affect the visual style of the entrance, while an L shaped design offers a more integrated solution.
However, the best choice depends on the door type, building requirements, safety regulations, and user expectations. Both designs can provide reliable emergency exit performance when properly selected and installed.
Camax Hardware Manufactures L Shaped Panic Handles
Camax Hardware specializes in manufacturing commercial door hardware, including L shaped panic handles, panic exit devices, mortise locks, concealed hinges, and other architectural hardware solutions. With OEM and ODM manufacturing experience, Camax supports distributors, door hardware brands, and project contractors worldwide.
Every L shaped panic device ADA compliant unit produced by Camax is engineered to meet accessibility requirements, so building owners can install with confidence on public facing entrances. The lineup includes options for single doors, L shaped panic bar for double doors, and an L shaped panic handle with keyed lock for locations that need controlled access from the exterior side.
Camax also supports projects that need an L shaped panic bar with dogging feature, which allows the latch to be held retracted during business hours for free access, then reactivated for full panic function after closing. This flexibility is popular in retail centers and office buildings that shift between open and secured modes throughout the day.
1. Top Latching Panic Device
A top latching panic device secures the door through a latch mechanism located at the upper section of the door. This structure is commonly used for taller doors where additional security and reliable engagement are required.
A L shaped top latch panic exit device provides a clean appearance because the locking point is positioned away from the main operating area. It is suitable for many commercial entrance applications where appearance and performance are equally important.
2. Bottom Latching Panic Device
A bottom latching panic device secures the door through a locking point located near the bottom area of the door. This design can provide additional stability for specific door configurations.
Depending on the project design, a bottom latch system may be selected for doors that require enhanced stability, customized locking solutions, or special architectural requirements.
Contact Camax and Manufacture Your L Shaped Panic Handle
An L shaped panic handle provides an effective combination of emergency safety, modern appearance, and flexible application possibilities. It is widely used for glass doors, commercial entrances, offices, hotels, hospitals, and public buildings.
With professional manufacturing capabilities, Camax Hardware supplies L shaped panic hardware with OEM and ODM services for global customers. From customized designs and finishes to different locking configurations, Camax helps partners develop reliable door hardware solutions for their markets.
Contact Camax Hardware to discuss your OEM or ODM requirements. Our team can provide customized panic exit solutions for commercial doors, glass doors, and architectural projects.
